New Design Factory Price Single Led Ufo 200Watt High Bay Light
Item NO:Led Ufo 200Watt High Bay Light HBLED-SF7
Model No. | HBLED- 100W-SF7 | HBLED- 120W-SF7 | HBLED- 150W-SF7 | HBLED- 200W-SF7 | HBLED- 240W-SF7 |
Watt | 100 | 120 | 150 | 200 | 240 |
CRI | 80 | 80 | 80 | 80 | 80 |
IP | IP65 | IP65 | IP65 | IP65 | IP65 |
PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
Lumen | 13000lm | 15600lm | 19500lm | 26000lm | 31200lm |
LED Chip | 133 SMD3030 | 210 SMD3030 | 210 SMD3030 | 315 SMD3030 | 315 SMD3030 |

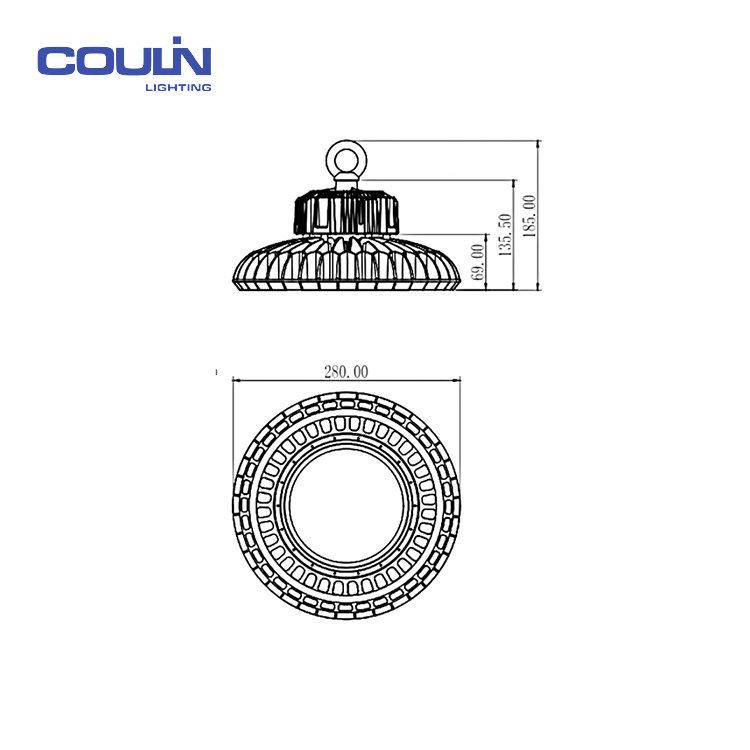

Size (mm) | Φ280*196.5mm | Φ340*196.5mm | Φ340*196.5mm | Φ400*196.5mm | Φ400*196.5mm |
Material | Aluminium +PC | Aluminium +PC | Aluminium +PC | Aluminium +PC | Aluminium +PC |
Beam Angle | 60°/120° | 60°/120° | 60°/120° | 60°/120° | 60°/120° |
specification:
Application
1.Workshop, factory, station, hypermarket, exhibition, center, gym
2.Advertising board, outdoor advertisements ,wall ,gymnasium and so on
Feature:
-Use professional flood light’s thermal grease under the chip, let the heat run out quickly.
-Use professional waterproof glue to seal every hole
-Use toughened glass, hard enough and won’t be broken during transportation
-With reasonable compact light structure, and expertise radiating design, ensure the lights working temperature lower,reduce light decay and expand lifetime
-High efficiency constant current driver , power factor can reach 0.95
-Work perfectly in the high humidity environments -No delay start, no glare
-Energy-saving: saving 80% than the ordinary lamp;
-Eliminates maintenance and reduces costs
-Easy installation
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and out-door lighting. (Led panel Light, Led flood Light, Led celling Light etc. )
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
