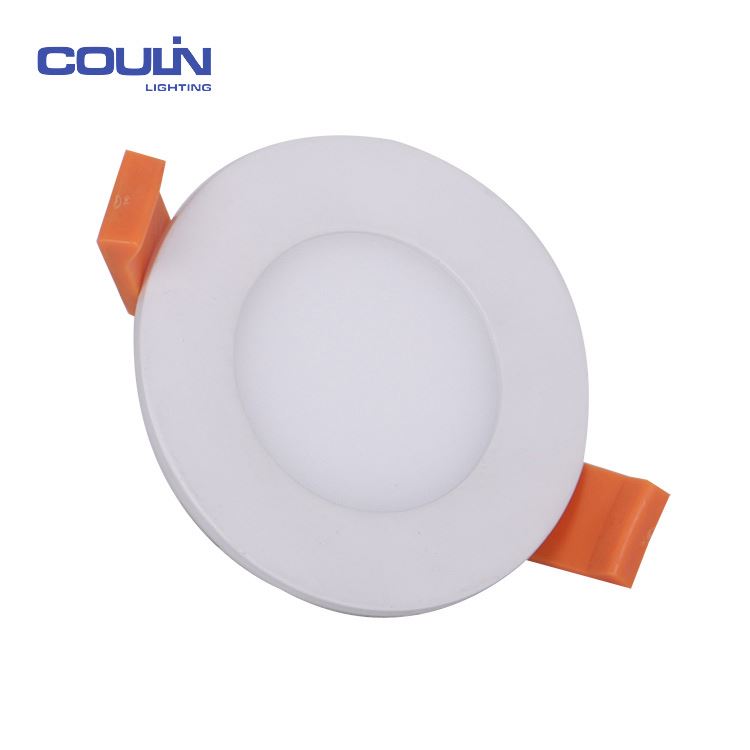

Total Quality control Glass Led Downlight
Item NO:Glass Led Downlight PL-R
Parameter :
- Material: ALuminum & Glass
- Input Voltage: AC85-265V
- Color Temperature:2700-6500K
- Beam angle :120 degree
- PF: >0.5 or 0.9
- RA: > 70 or 80
- Working Temperature: -20°c-----40°c
Model No. | PL-85MM -R-3W | PL-105MM -R-4W | PL-120MM -R-6W | PL-145MM -R-9W | PL-170MM -R-12W | PL-190MM -R-15W | PL-225MM -R-18W |
Watt | 3 | 4 | 6 | 9 | 12 | 15 | 18 |
CRI | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Input Voltage | 90-265V | 90-265V | 90-265V | 90-265V | 90-265V | 90-265V | 90-265V |
Lumen | 80lm/W | 80lm/W | 80lm/W | 80lm/W | 80lm/W | 80lm/W | 80lm/W |
LED Chip | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
Size (mm) | 85x12mm Cut: 72mm | 105x12mm Cut: 90mm | 120x12mm Cut: 105mm | 145x12mm Cut: 130mm | 170x12mm Cut: 160mm | 190x12mm Cut: 175mm | 225x12mm Cut: 210mm |
Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
Characteristics:
1. High luminous efficiency and energy saving
2. Super Environment Friendly
3. Super Long Lifetime
4. More Brightness
5. High Color Rendering Index
6. Low Power Consumptio
7. Quick Start, No Flicker, No Noise, Eye Protection
8. Big Lighting Angle, which can enlarge the luminous area effectively
9. Good heat dissipation, improving the panel light"s lifespan
10. Easy to install
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and out-door lighting. (Led panel Light, Led flood Light, Led celling Light etc. )
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
