Home > Products > explosion-proof high bay lighting

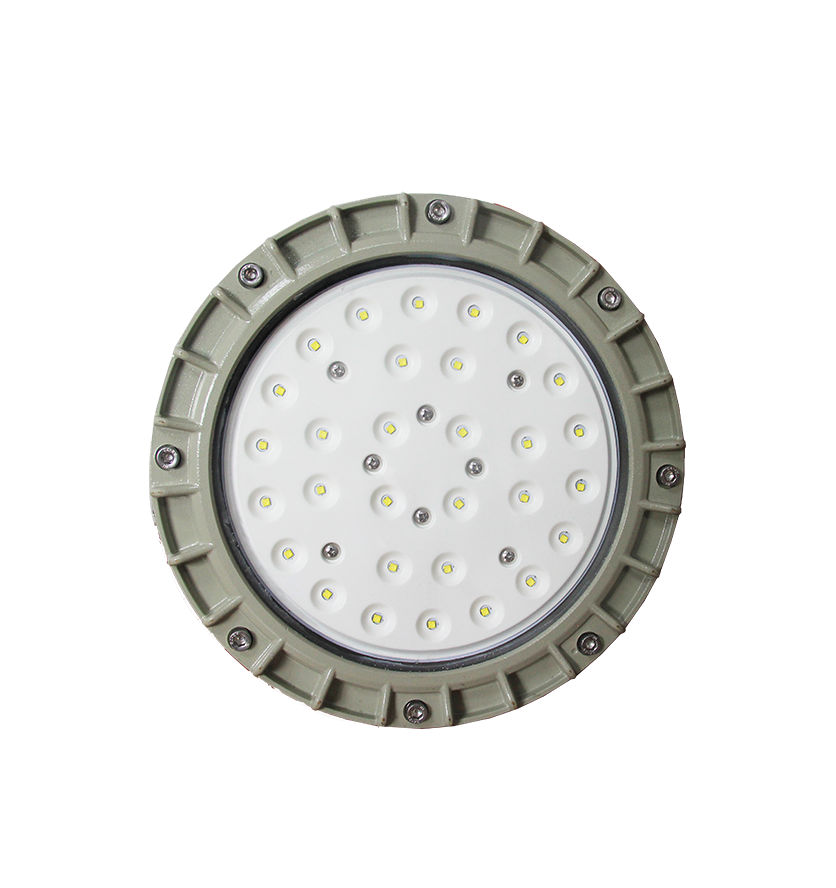

explosion-proof high bay lighting
Click on the image to view the original image
Product： views：6explosion-proof high bay lighting
Branch： Crown Extra
Type： GYD2107
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:27
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-240V
Lamp Power(W):
50
CRI (Ra>):
70
Lamp Luminous Flux(lm):
6000
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 40
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Brand Name:
Crown Extra
Light Source:
LED
Item Type:
Explosion-proof Lights
Type:
GYD2107
Application:
Hazardous Location Lighting
Ex-mark:
Ex d IICT6
Power range:
20-240W
Weight:
10
Housing material:
Aluminum alloy
Surface glass:
Tempered glass
Warranty:
5Years
Lamp Luminous Efficiency(lm/w):
120
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
5 layers of corrugated carton, hard protect bracket inside.
Port
Shipped in 7 days after payment
Lead Time:
Quantity(Sets)1 - 50 >50
Est. Time(days)7To be negotiated
Products

explosion flame proof gas station led lamp fittings provides about 130lm/w and are designed to meet global explosion proof Standard.

Designed for Explosive Atmospheres Zone 1 and Zone 2 Hazardous Area;
Designed for IIA, IIB and IIC Groups Explosive Atmospheres;
Designed for Temperature Classifications T1~T6;
Applied for Explosive Hazardous Locations: Oil Refinery, Storage, Chemical, Pharmaceuticals, Textile, Printing, Paint-spray,Military Industries, Etc.

Features

- Instant on crisp white light output
- High efficiency drivers and LEDs provide small energy cost in harsh and heavy industrial applications
- Isolated LED compartment reduces temperature within driver housing
- Dense cooling fins design enhances airflow for greater heat dissipation
- High transparency crystal tempered glass for less light loss
- 5 year fixture warranty
Model size
GYD2106
GYD2107
GYD2108
European (ATEX)
Gas and Dust
CE1282(Ex) II2G Exd IIC Gb
CE1282(Ex) IID Extb Db
Input voltage
85-255V AC, 277VAC, 50/60 HZ, Customized DC voltage is provided.
Power
20-50Watt
60-100Watt
100-150Watt
LED chips
18 CREE USA
30 CREE USA
50 CREE USA
Lumen efficiency(lm/w)
100-120lm/w
Lamp material
Aluminum alloy with powder spray, corrosion proof of WF1
LED driver
IP67 LED driver, same design as meanwell
Protection grade
IP65/IP66
Size
210*210*250mm
260*260*270mm
320*320*310mm
Net Weight
4.5kg(9.9 lb)
5.0kg (11.0 lb)
9.1kg (20.1 lb)
Mounted style
Pendant; Ceiling; Wall Bracket; Stanchion
Warranty
5 years
Application

That"s when you need an explosion proof light

If there are such flammable substances exist in your location.
explosion flame proof gas station led lamp fittings

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

Product details

Photometric curve

Installation
Certifications

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

Guide of selection

Free Service We Could Provide

1. DIALUX simulation service
2. IES file
3. LM-80 Report of led chip
4. Test Report of integrating sphere
5. Product Brochure with your contact information to help you expand localized market

Customized Service

1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN
2. LED Driver: Meanwell, Inventronics
3. CCT: 4000-4500K, 5000K
4. Color of the epoxy powder
5. Emergency function
6. Nameplate and Packing

Our company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.

5Factory price

Welcome your inspection of our factory or meet on Exhibition
About 1 hrs from Shanghai to our factory
FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.
3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.
2. Warranty: 3-5 Year
3. No MOQ
4. Lead time: 3-7 days
