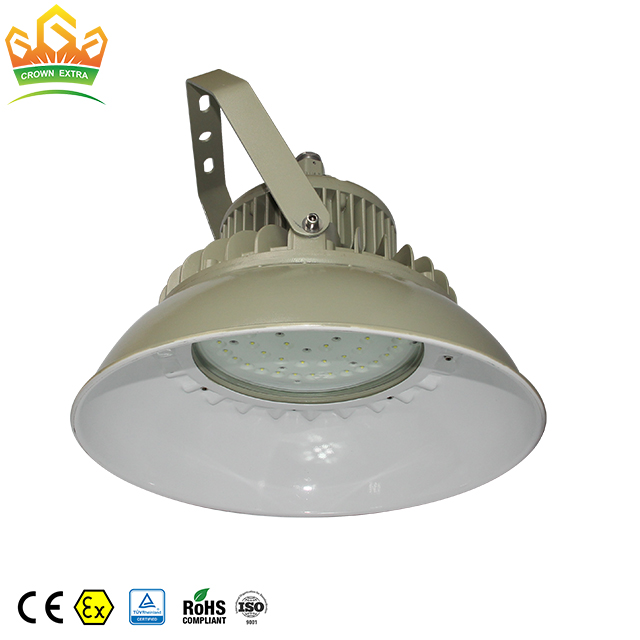

class 1 div 2 led lighting
Click on the image to view the original image
Product： views：2class 1 div 2 led lighting
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:27
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-240V
Lamp Power(W):
100
CRI (Ra>):
70
Lamp Luminous Flux(lm):
10000
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 40
Emitting Color:
Cold White
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Base Type:
LED CHIP
Brand Name:
Crown Extra
Light Source:
LED, LED
Item Type:
Explosion-proof Lights, Explosion-proof Lights
Driver:
Meanwell
Housing:
Aluminum alloy
Lens:
Tempered glass
Ex-mark:
ExdIICT6
Corrosion proof:
WF2
Power range:
20-250W
Color Temperature(CCT):
Cool White
LED Light Source:
USA Cree XTE
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing, hard protection bracket inside.
Port
Shanghai, Shenzhen, any seaport from China
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)7To be negotiated
Application

That"s when you need an high bay led explosion-proof light

If there are such flammable substances exist in your location.

Hazardous Location Led High Bay Explosion-Proof Light good Price

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

Branch
Explosion Hazard
Branch
Explosion Hazard
Chemical Industry
Flammable Gases/Liquids/Solids
Paint-spraying
Overspray in Spray-paint Bays Solvent Vapor Emissions
Landfills
Civil Engineering
Flammable Landfill Gases
Uncontrolled Gas Emissions
Flammable Gas from poor ventillation sources
Agriculture
Bio-gas Production Plants
Bio-gas Located on Farms
Paint-spraying
Lump Coal Dust
Metal-work
Explosive Metal Dust
Spark-ignitable Metal Dust
Waste Disposal
Waste-water Treatment Gasses
Food/Beverage
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Gas Suppliers
Natural Gas Leagage
Natural Gas Emissions
Pharmaceutical
Alcohol Solvents
Materials explosive when mixed
Woodworking Industry
Saw Dust
Fine Wood Chips
Refinery
Hydorocarbons close to their flash-points
Oil Processing Plants
Products
Model size
GYD2106Z
GYD2107Z
GYD2108Z
European (ATEX)
Gas and Dust
CE1282(Ex) II2G Exd IIC Gb
CE1282(Ex) IID Extb Db
Input voltage
85-255V AC, 277VAC, 50/60 HZ, Customized DC voltage is provided.
Power
20-50Watt
60-90Watt
100-150Watt
LED chips
18 CREE USA
30 CREE USA
50 CREE USA
Lumen efficiency(lm/w)
100-120lm/w
Lamp material
Aluminum alloy with powder spray, corrosion proof of WF1
LED driver
IP67 LED driver, same design as meanwell
5.2Protection grade
IP65/IP66
Size
310*310*320mm
410*410*370mm
470*470*360mm
Net Weight
5.2 kg(11.5 lb)
6.1 kg (13.4 lb)
10.6 kg (23.4 lb)
Mounted style
Pendant; Ceiling; Wall Bracket; Stanchion
Warrangy
5 years
Componets

Why the light is explosion proof?

1. The housing is strong enough to withstand the pressure of explosion.


2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.

Photometric Curve

Installation
Certificate

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

Customized service

Free Service We Could Provide

1. DIALUX simulation service

2. IES file

3. LM-80 Report of led chip

4. Test Report of integrating sphere

5. Product Brochure with your contact information to help you expand localized market

Customized Service

1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN

2. LED Driver: Meanwell, Inventronics

3. CCT: 4000-4500K, 5000K

4. Color of the epoxy powder

5. Emergency function

6. Nameplate and Packing

Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5  Factory price

Welcome your inspection of our factory or meet on Exhibition

About 1 hrs from Shanghai to our factory

FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. Warranty: 3-5 Year

3. No MOQ

4. Lead time: 3-7 days
