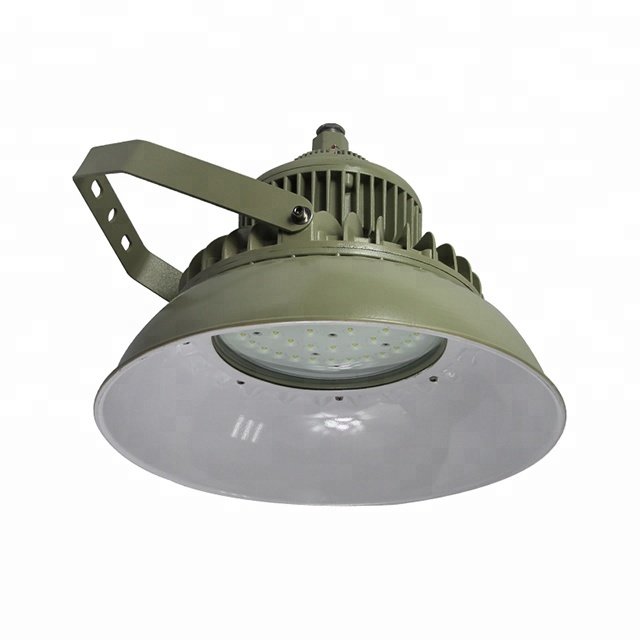

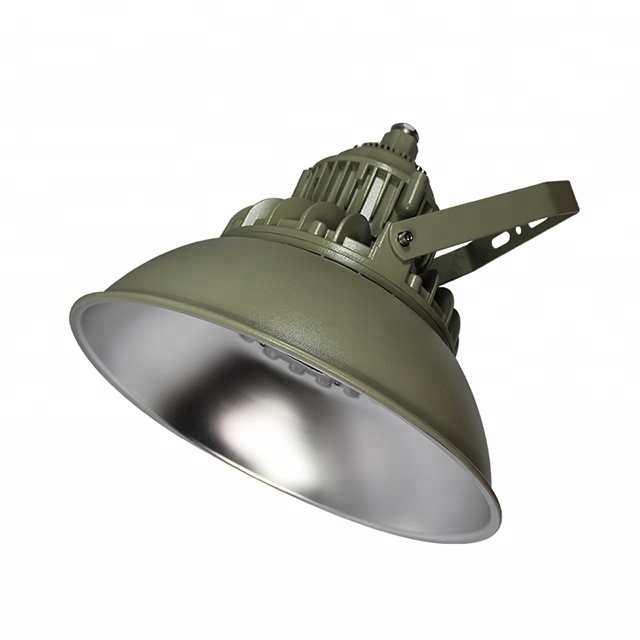

fire proof light
Click on the image to view the original image
Product： views：2fire proof light
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC 100-240V (50-60Hz)
Lamp Power(W):
50
CRI (Ra>):
70
Lamp Luminous Flux(lm):
5600
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Emitting Color:
Cold White
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Brand Name:
Crown Extra
Light Source:
LED
fire proof light NO.:
GYD2107Z
fire proof light size:
310*310*310mm
fire proof light weight:
5.2KG
fire proof light mounting style:
pendant;ceiling; wall bracket; stanchion
fire proof light Area:
Zone1, Zone 2, Zone21, Zone22
fire proof light warranty:
5Years
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Cree XTE
Lamp Luminous Efficiency(lm/w):
80
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton or Wooden box packing
Port
Shanghai; Ningbo
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)7To be negotiated
Certifications

Crown Extra lighting Co., Ltd is a professional factory in explosion proof Light. We have  got authorized certificates such as ATEX, CNEX, CE, RoHS, ISO9001.

Specification


Not the one you need?

You may like:


50W Explosion Proof Lights Class 1 Div 1 Lights ATEX LED


100W Explosion Proof LED Wall Pack Light


Explosion Proof Led Lamp for Gas Station


Product Description

APPLICATION

Zone 1, 2 & Zone 21, 22

IIA, IIB, IIC, T1~T6

Altitude does not exceed 2000m

Operation temperature: -20℃~+40℃;-20℃~+60℃ (standard atmospheric condition )

Atmosphere humidity is no more than 95% (Temperature of +25 ℃)

None insulation-damaged gas or steam

No significant shake or shock vibration

The input voltage is 100-240Vac, 50~60Hz

Standard Materials

Housing:Die-casting aluminum

Exterior:Stainless steel

Globe:Tempered glass

Gasket:Silicon rubber


why is the fire proof light is fire-proof?



1. The housing is strong enough to withstand the pressure of explosion.
2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.


Mounting Styles



Applications

Typical applications of fire proof light include:

Branch
Explosion Hazard
Branch
Explosion Hazard
Chemical Industry
Flammable Gases/Liquids/Solids
Paint-spraying
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Landfills

Civil Engineering
Flammable Landfill Gases
Uncontrolled Gas Emissions
Flammable Gas from poor ventillation sources
Agriculture
Bio-gas Production Plants

Bio-gas Located on Farms
Power Generation
Lump Coal Dust
Metal-work
Explosive Metal Dust
Spark-ignitable Metal Dust
Waste Disposal
Waste-water Treatment Gasses
Food/Beverage
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Gas Suppliers
Natural Gas Leagage

Natural Gas Emissions
Pharmaceutical
Alcohol Solvents
Materials explosive when mixed
Woodworking Industry
Saw Dust

Fine Wood Chips
Refinery
Hydorocarbons close to their flash-points
Oil Processing Plants
Packing & Delivery

Delievery:

Express; bu sea, by air
Package:
wooden box
carton box: we have choice of both neutral box and general box with Crown Extra Logo, please note which you need when you place an order
Company Information

About Us

Crown Extra Lighting Co., Ltd was founded since 2011. We are specialized in LED Ex Proof Light Series, Ex-proof Emergency, Obstruction,  Ex-proof H.I.D light fixture,  Ex-proof Appliance, Ex-proof Equipment, etc.

Our complete product range including lighting products panel distribution, enclosures, fixtures, fittings, control stations, receptacles,etc. for the provision of hazardous area.

Crown extra products have approvals and certificates including EU ATEX, China CNEX, RoHs, ISO 9001:2008, ISO14001:2004 and OHSAS18001.





customer feedback


FAQ and Contact

Q1. Can I have a sample order for fire proof light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for fire proof light?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for fire proof light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the fire proof light?

A: Yes, we offer 3-5 years warranty to our products.

Q7: is OEM or ODM available for this type of fire proof light?

A: Yes
