Home > Products > ip66 120 degree gas station canopy led light

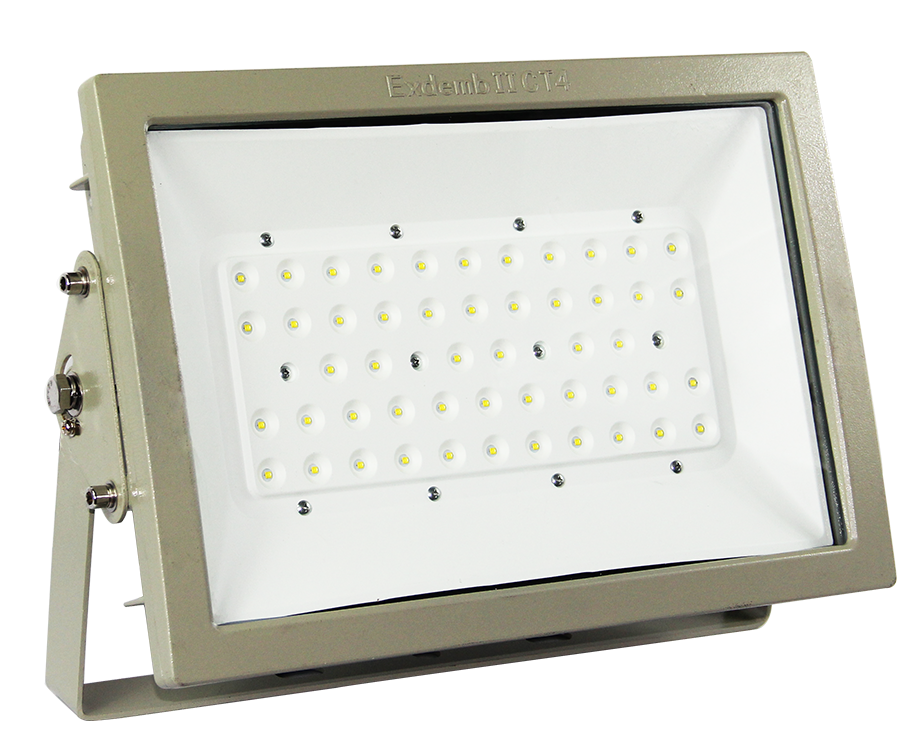

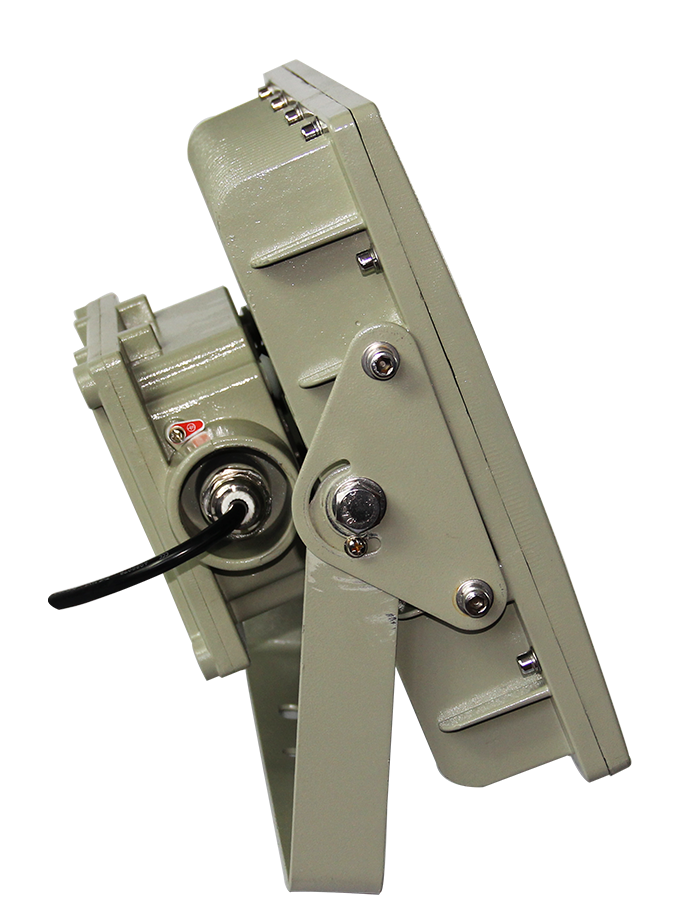

ip66 120 degree gas station canopy led light
Click on the image to view the original image
Product： views：2ip66 120 degree gas station canopy led light
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
85-277V
Lamp Power(W):
300
CRI (Ra>):
70
Lamp Luminous Flux(lm):
7200
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Emitting Color:
Cold White
Certification:
CCC, CE, RoHS
Place of Origin:
China
Base Type:
LED CHIP
Brand Name:
Crown Extra
Light Source:
LED
Application:
Hazardous location lighting
Power:
20 - 300w
Ex-mark:
2GD Ex d IIC T6
IP grade:
IP66
LED Chip:
CREE
Warranty:
5-year
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
CREE XTE
Lamp Luminous Efficiency(lm/w):
150
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)7To be negotiated
Video Description
Products

explosion proof led work light provides about 130lm/w and are designed to meet globel explosion proof Standard.

Designed for Explosive Atmospheres Zone 1 and Zone 2 Hazardous Area;
Designed for IIA, IIB and IIC Groups Explosive Atmospheres;
Designed for Temperature Classifications T1~T6;
Applied for Explosive Hazardous Locations: Oil Refinery, Storage, Chemical, Pharmaceuticals, Textile, Printing, Paint-spray,Military Industries, Etc.

Features

- Instant on crisp white light output
- High efficiency drivers and LEDs provide small energy cost in harsh and heavy industrial applications
- Isolated LED compartment reduces temperature within driver housing
- Dense cooling fins design enhances airflow for greater heat dissipation
- High transparency crystal tempered glass for less light loss

 - DC/AC power supply can be customized.
- 5 year fixture warranty

Name
Explosion Proof LED Lighting
Type
GYD97-P
Protection
EEx d e mb IIC T6 2GD, IP66
Classification
Zone  1, 2 & Zone 21, 22
Input Voltage
24VDC
Power Supply
100-150Watt
Efficacy
100-130 Lm/W, LED itself 145-160Lm/W
Beam Angle
110°/120°
Certificate
ATEX, CE, RoHS, CNEX
Mounting
Portable, 360° Rotated
Warranty
5-Year
Application

That"s when you need an ATEX explosive light

If there are such flammable substances exist in your location.

explosion proof led work light

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

Components

Why the light is explosion proof?

1. The housing is strong enough to withstand the pressure of explosion.


2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.

Installation
Certification

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

Customized service
Company
FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. No MOQ

3. Lead time: 3-7 days
