Click on the image to view the original image
1. The housing is strong enough to withstand the pressure of explosion.
2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.
Application
That's when you need an high bay led explosion-proof light
If there are such flammable substances exist in your location.
explosion proof led high bay ip 66 grade led gas station
Flammable Gas
Hydrogen, etc.
Flammable Liquids/Vapors
Hydrocarbons such as ether, acetone, lighter fluids, etc.
Flammable Solids
Dust, fiber, and flyings

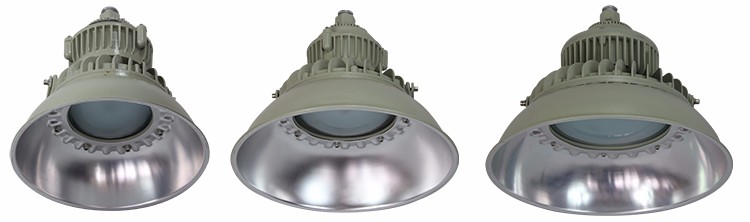

Products
Model size | GYD2106Z | GYD2107Z | GYD2108Z | ||
European (ATEX) Gas and Dust | CE1282(Ex) II2G Exd IIC Gb CE1282(Ex) IID Extb Db | ||||
Input voltage | 85-255V AC, 277VAC, 50/60 HZ, Customized DC voltage is provided. | ||||
Power | 20-50Watt | 60-90Watt | 100-150Watt | ||
LED chips | 18 CREE USA | 30 CREE USA | 50 CREE USA | ||
Lumen efficiency(lm/w) | 100-120lm/w | ||||
Lamp material | Aluminum alloy with powder spray, corrosion proof of WF1 | ||||
LED driver | IP67 LED driver, same design as meanwell | ||||
5.2Protection grade | IP65/IP66 | ||||
Size | 310*310*320mm | 410*410*370mm | 470*470*360mm | ||
Net Weight | 5.2 kg（11.5 lb） | 6.1 kg (13.4 lb) | 10.6 kg (23.4 lb) | ||
Mounted style | Pendant; Ceiling; Wall Bracket; Stanchion | ||||
Warrangy | 5 years | ||||
Componets
Why the light is explosion proof?
Photometric Curve
Installation
Certificate
Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.
Customized service
Free Service We Could Provide
1. DIALUX simulation service
2. IES file
3. LM-80 Report of led chip
4. Test Report of integrating sphere
5. Product Brochure with your contact information to help you expand localized market
Customized Service
1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN
2. LED Driver: Meanwell， Inventronics
3. CCT: 4000-4500K, 5000K
4. Color of the epoxy powder
5. Emergency function
6. Nameplate and Packing
Company
Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5 Factory price
Welcome your inspection of our factory or meet on Exhibition
About 1 hrs from Shanghai to our factory
FAQ
Payment Terms
1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.
Shipping Terms
1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.
3.Carton or Wooden box packing.
Others
1. OEM & ODM are available.
2. Warranty: 3-5 Year
3. No MOQ
4. Lead time: 3-7 days
