Home > Products > 150w explosion proof atex high bay light

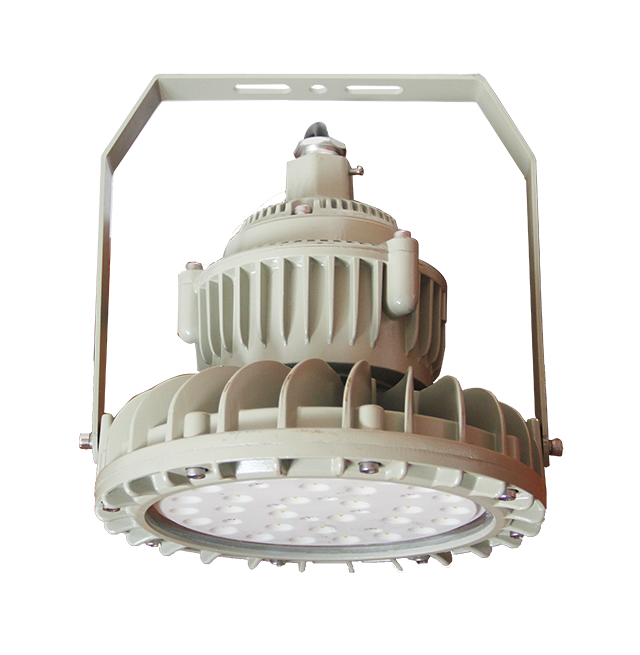

150w explosion proof atex high bay light
Click on the image to view the original image
Product： views：2150w explosion proof atex high bay light
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-240VAC
Lamp Power(W):
150
CRI (Ra>):
70
Lamp Luminous Flux(lm):
30000
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 40
Emitting Color:
Cold White
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Brand Name:
Crown Extra
Light Source:
LED
Color:
Gray
Application:
hazardous location lighting
Power:
150W
Ex-mark:
Ex d IICT6
Croosion-proof grade:
WF2
surface shell:
tempered glass
certification:
ATEX, CE, ISO, RoHS
LED chip:
Cree
LED driver:
Owed brand, same designed as Meanwell.
Warranty:
5 year
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
CREE
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing.Hard protection bracket inside.
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)7To be negotiated
Application

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

That"s when you need an explosion proof light

If there are such flammable substances exist in your location.explosion proof atex high bay pendant light

Product details
Name
Explosion proof led high bay pendant light
Model
GYD210
Ex-mark
EEx d e mb IIC T6 2GD, IP66
Classification
Zone1, 2 & Zone 21, 22
Input Voltage
100-240VAC, 50/60 Hz
Efficacy
100-130 Lm/W, LED itself 145-160 Lm/W
Beam Angle
110°/120°
Certificate
CE/RoHS/ATEX/CNEX
Mounting
Street, Ceiling, Pedant, Stanchion
Warranty
5 years
GYD2106
GYD2107
GYD2108
GYD2109
20-50Watt
60-90Watt
100-150Watt
180-250Watt
18 CREE XTE CHIPS
30 CREE XTE CHIPS
50 CREE XTE CHIPS
60/100 CREE XTE CHIPS
4.5 kg(9.9 lb)
5 kg (11 lb)
9.1 kg (20 lb)
9.5 kg (21 lb)
210mm*250mm
260mm*270mm
360mm*300mm
360mm*300mm
Components

Why the light is explosion proof?

1. The housing is strong enough to withstand the pressure of explosion.


2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.

Photometric Curve

Certification

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

Installation
Customized service

Free Service We Could Provide

1. DIALUX simulation service

2. IES file

3. LM-80 Report of led chip

4. Test Report of integrating sphere

5. Product Brochure with your contact information to help you expand localized market

Customized Service

1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN

2. LED Driver: Meanwell, Inventronics

3. CCT: 4000-4500K, 5000K

4. Color of the epoxy powder

5. Emergency function

6. Nameplate and Packing

Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5  Factory price

Welcome your inspection of our factory or meet on Exhibition

About 1 hrs from Shanghai to our factory

FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. Warranty: 3-5 Year

3. No MOQ

4. Lead time: 3-7 days
