Home > Products > ip65 120 degree canopy led gas station light fixtures 200w

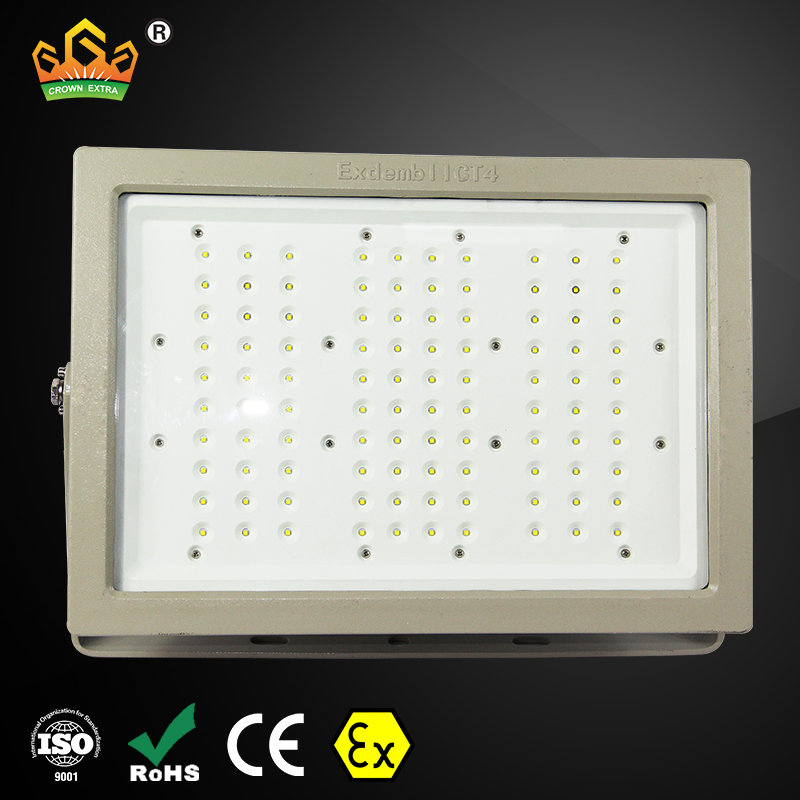

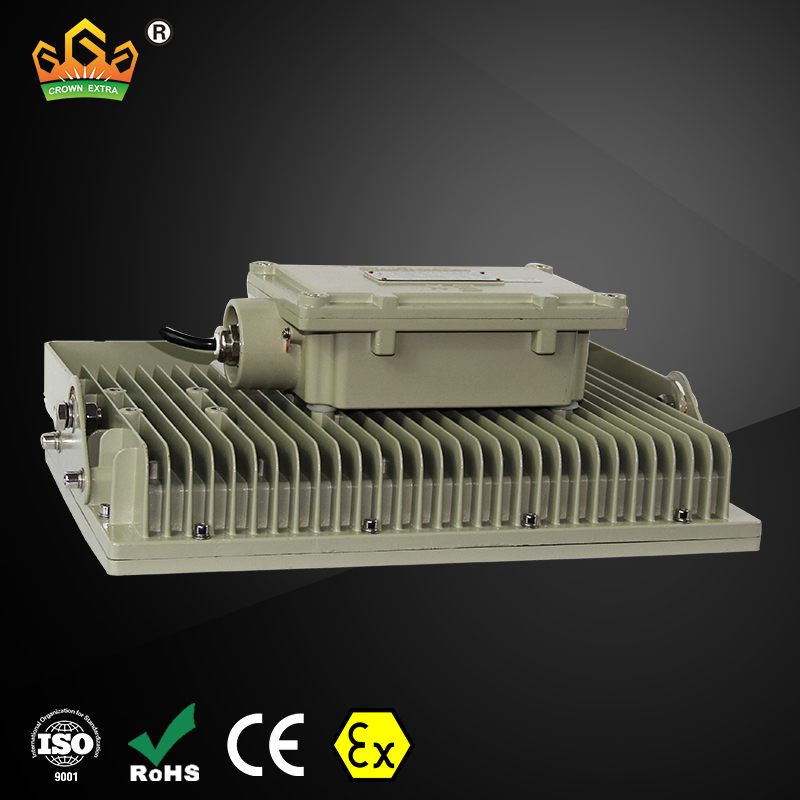

ip65 120 degree canopy led gas station light fixtures 200w
Click on the image to view the original image
Product： views：4ip65 120 degree canopy led gas station light fixtures 200w
Type： LED Canpy Light
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Type:
LED Canpy Light
Certification:
ATEX, CE, ISO, RoHS
Application:
hazardous location lighting
Ex-mark:
Ex de mb IICT6
Power:
200w
Corrosion-proof grade:
WF1
IP Rating:
IP66
housing material:
Aluminum alloy
surface shell:
tempered glass
LED chip:
Cree
LED driver:
Owed brand, same designed as Meanwell.
warranty:
5 years
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 1011 - 3031 - 200 >200
Est. Time(days)71525To be negotiated
Video Description
Application

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

Branch
Explosion Hazard
Branch
Explosion Hazard
Chemical Industry
Flammable Gases/Liquids/Solids
Paint-spraying
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Landfills
Civil Engineering
Flammable Landfill Gases
Uncontrolled Gas Emissions
Flammable Gas from poor ventillation sources
Agriculture
Bio-gas Production Plants
Bio-gas Located on Farms
Power Generation
Lump Coal Dust
Metal-work
Explosive Metal Dust
Spark-ignitable Metal Dust
Waste Disposal
Waste-water Treatment Gasses
Food/Beverage
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Gas Suppliers
Natural Gas Leagage
Natural Gas Emissions
Pharmaceutical
Alcohol Solvents
Materials explosive when mixed
Woodworking Industry
Saw Dust
Fine Wood Chips
Refinery
Hydorocarbons close to their flash-points
Oil Processing Plants

That"s when you need an Anti Explosion light.

If there are such flammable substances exist in your location. IP65 120 degree canopy led gas station light fixtures

Technical Data
Name
Explosion Proof LED Lighting
Type
GYD9701
Protection
EEx d e mb IIC T6 2GD, IP66
Classification
Zone  1, 2 & Zone 21, 22
Input Voltage
100-240VAC, 50/60 Hz
Power Supply
20-70Watt
Efficacy
100-130 Lm/W, LED itself 145-160Lm/W
Certificate
CE/RoHS/ATEX/CNEX
Beam Angle
110°/120°
Mounting
Street, Ceiling, Pedant, Stanchion
Warranty
5-year

GYD97 LED EXPLOSION PROOF LIGHT SERIES

GYD9701
GYD9702
GYD9703
20-70Watt
80-150Watt
180-300Watt
30 CREE XTE CHIPS
50 CREE XTE CHIPS
100 CREE XTE CHIPS
9.3kg(20.5 lb)
12kg (26.5 lb)
18kg (39.7 lb)
310mm*255mm
446mm*306mm
478mm*335mm
Details

Why the light is explosion proof?

1. The housing is strong enough to withstand the pressure of explosion.


2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

What is the advantage of nanometer reflector?

1. Nanometer reflector is thin and good for light distribution. The material of nanometer is for just 2% light loss and environmentally friendly.
2. The thickness of old electroplate reflector is about 1 mm and the light could not radiate effectively. Besides, the light loss of this material is about 10-12%.

Free Service We Could Provide

1. DIALUX simulation service
2. IES file
3. LM-80 Report of led chip
4. Test Report of integrating sphere
5. Product Brochure with your contact information to help you expand localized market

Customized Service

1. Led chip: CREE-XPG, PHILIP 3030/5050, OSRAM 3030, CTIZEN
2. LED Driver: Meanwell, Inventronics
3. CCT: 4000-4500K, 5000K
4. Color of the epoxy powder
5. Emergency function
6. Nameplate and Packing

Installation
Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 6 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5  Factory price

Welcome your inspection of our factory or meet on Exhibition

About 1 hrs from Shanghai to our factory

FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. No MOQ

3. Lead time: 3-7 days
