Home > Products > 60Watt 65W Atex Anti Explosion Proof Light

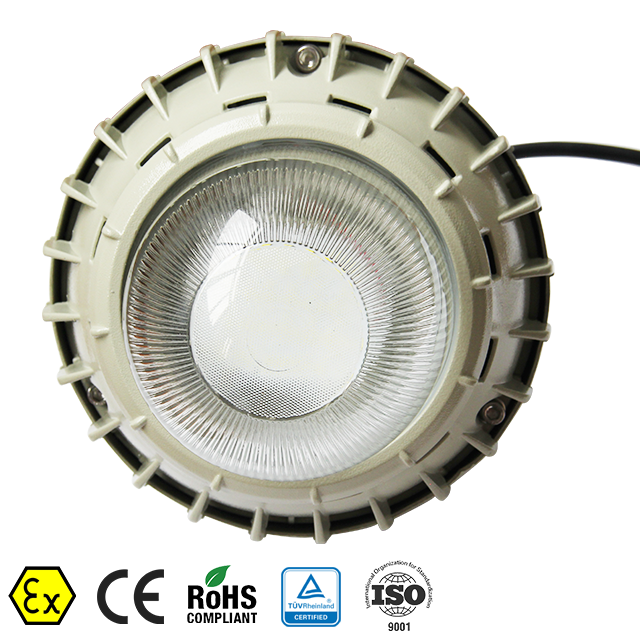

60Watt 65W Atex Anti Explosion Proof Light
Click on the image to view the original image
Product： views：460Watt 65W Atex Anti Explosion Proof Light
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Power(W):
250
CRI (Ra>):
80
Lamp Luminous Flux(lm):
18000
IP Rating:
IP66
Working Lifetime(Hour):
100000
Working Temperature(℃):
-50 - 60
Emitting Color:
Cold White
Certification:
CE, RoHS
Place of Origin:
Jiangsu, China
Brand Name:
Crown Extra
Light Source:
LED
features:
explosion proof
Power range:
30-300w
Corrosion-proof grade:
WF2
housing material:
Aluminum alloy
surface shell:
tempered glass
warranty:
3 years / 5 years
certification:
ATEX, CE, ISO. RoHS
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Bridgelux or Cree, USA
Lamp Luminous Efficiency(lm/w):
130
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing, foam protection, single poly bag.
Port
Shanghai, Ningbo or any port convenient to you
Certifications
Description

GYD97 Professional explosion proof led mining lights made in China
led mining lights

Standard Material

Housing: copperfree aluminium (AlSi12) with epoxy powdered coated (RAL7035)

Exterior: stainless steel

Globe: tempered glass

Gasket: Silicon rubber

Lamp
Lamp specification
Lamp power
Liht efficiancy
LED driver

Colour temperature (CCT)

International brand of integrated
20-300w
110 Lm/W
IP67, wide voltage input, CC-CV (constant current - constant voltage) output, power factor >0.95, with function of overcurrent, overvoltage
Cool white: 5400-6500K
Note: cool white is available in general, warm white (2700-3500K) or nature white (4700-5400K) is optional
Explosion protection
Classification
Installation
Ex d IIC T6
Group II Category 2GD
Zone 1 - Zone 2 (gas), Zone 21 - Zone 22 (dust)
Certification
Standard
ATEX ECM 1C160628.CEL39     CNEX 8141020X
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
GB 3836., GB3836.2, GB3836.3, GB12476.1
Ingress protection
IP65, IP66 (optional)
Corrosion resistant
WF2
Rated voltage
90-305VDC, 50-60Hz
Cable entries
M25x1.5, G3/4"
Mounting
Pendant, ceiling, wall bracket, stanchion
Ex Marking
Ex d IIC T6
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22
IP Degree
IP66
Corrosion Resistant
WF1
Input Voltage
90-264VAC, 277VAC, 50/60 Hz
Power Factor
0.98
Conduit Entries
G 3/4"
Mounting Styles
Pendant; Ceiling; Embedded; Wall Bracket;Stanchion (Street light)
Model No.
GYD9701
GYD9702
GYD9703
GYD9704
Power Supply
20-70Watt
80-150Watt
160-200Watt
240-300Watt
Lumen
2000-7000Lm
7000-15000Lm
16000-25000Lm
26000-30000Lm
Light Source
LED
LED
LED
LED
Fixture Weight
8.4kg
12kg
17.7kg
20.7kg
Dimensions
310mm*255mm
446mm*306mm
478mm*335mm
575mm*360mm
Application

Petrochemical plant

Marine

Oil Refinery

Paper Mill

Barn

Power Station

Applications for led mining lights:

— A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
— Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
— Areas with high energy costs
— Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation

Process
Installation
No.
Name
Remark
No.
Name
Remark
1
expansion bolt
Provided by user
9
elbow pipe 120°

2
pole
G3/4"
10
fence mounted type pole
G1 1/4"
3
lamp

11
pipe clamp

4
ex junction box
purchase seperate
12
bent pole
G1 1/4"
5
ex connector
purchase seperate
13
flange mounted type pole
G1 1/2"
6
elbow pipe90°

14
fence
Provided by user
7
pull-rod with nut

15
fasten bracket
Provided by user
8
hook

16
ex connector
G3/4"
Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in industrial lighting since 2011.
2 OEM & ODM is welcome, more than 100pcs can help put your logo without extra charge.
3 Sample is available, you can get sample on hands in 5-8 days after payment.
4 Fast service and on-time delivery
5 Factory price


Welcome your inspection of our factory

About 1 hrs from Shanghai to our factory
