Home > Products > Atex Led Explosion Proof Class 1 Div 1 Light Fixture

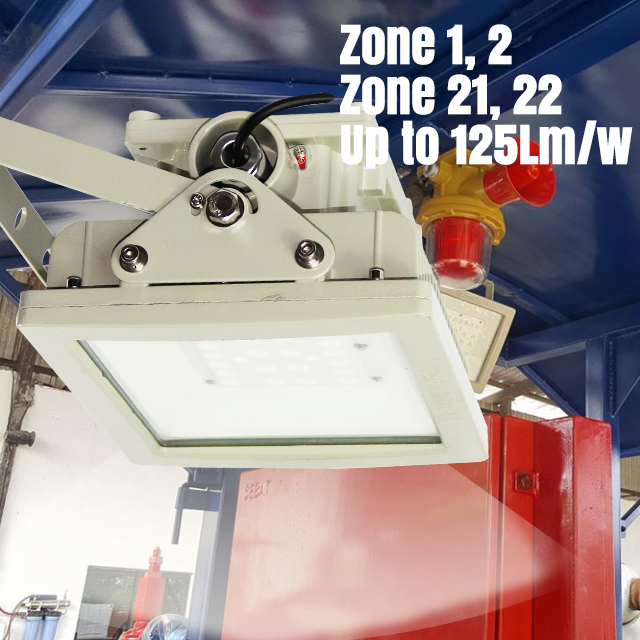

Atex Led Explosion Proof Class 1 Div 1 Light Fixture
Click on the image to view the original image
Product： views：4Atex Led Explosion Proof Class 1 Div 1 Light Fixture
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC110-240V (50-60Hz)
Lamp Power(W):
60
CRI (Ra>):
70
Lamp Luminous Flux(lm):
7200
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Emitting Color:
White
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Base Type:
LED CHIP
Brand Name:
Crown Extra
Light Source:
LED
Feature:
Explosion proof
Ex-mark:
Ex de mb IICT6
Warranty:
5 year
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
CREE XTE
Lamp Luminous Efficiency(lm/w):
120
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing
Port
Shanghai
Video Description
Exhibition Schedule

2018.10.26-10.30 Hong Kong International Outdoor and Tech Light Expo – Hongkong, China
BOOTH NO.: Hall8 D37


2018.11.6-11.9 Interlight Moscow – Moscow, Russia
BOOTH NO.: 8.B106

Related Products
Certifications

Luminaire Photometric Test Report

Get the data of total lumen, efficiency and IES file.

Light Source Test Report

Get the data of CRI, CCT and Electrical Parameters.

Technical Data
Name
Explosion Proof LED Lighting
Type
GYD9701
Protection
EEx d e mb IIC T6 2GD, IP66
Classification
Zone  1, 2 & Zone 21, 22
Input Voltage
100-240VAC, 50/60 Hz
Power Supply
20-70Watt
Efficacy
100-130 Lm/W, LED itself 145-160Lm/W
Certificate
CE/RoHS/ATEX/CNEX
Beam Angle
110°/120°
Mounting
Street, Ceiling, Pedant, Stanchion
Warranty
5-year

GYD97 LED EXPLOSION PROOF LIGHT SERIES

GYD9701
20-70Watt
80-150Watt
180-300Watt
30 CREE XTE CHIPS
50 CREE XTE CHIPS
100 CREE XTE CHIPS
9.3kg(20.5 lb)
12kg (26.5 lb)
18kg (39.7 lb)
310mm*255mm
446mm*306mm
478mm*335mm
Details

Why the light is explosion proof?

1. The housing is strong enough to withstand the pressure of explosion.


2. Even the explosion happen in the the lighting, the hot gas released through the enclosure has lost its power to cause ignition.

Note: Every ex proof products should have explosion proof certificate to ensure its safety in the hazardous area. Crown Extra has approved ATEX, CNEX certificate.

Installation
Company

Crown Extra, a manufacture provides lighting solutions for industrial space, both in hazardous and non-hazardous location since 2011.
Why choose us?
1 Professional manufacture in explosion proof lighting for 8 years.
2 Complete quality control system and through ISO90001, ISO14001, OHSAS18001 certification.
3 Reply immediately in 12-hrs.
4 Technical Support.
5  Factory price

Welcome your inspection of our factory or meet on Exhibition

About 1 hrs from Shanghai to our factory

FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. Warranty: 3-5 Year

3. No MOQ

4. Lead time: 3-7 days
