KCD2-201N 16A 250VAC ON OFF 4Pin With Light Rocker Switch

Click on the image to view the original image

Product：	views：6KCD2-201N 16A 250VAC ON OFF 4Pin With Light Rocker Switch
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KCD2-201N

Max. Current:: 20A

Max. Voltage:: 250VAC

Mechanical Life:: ≥10,000 Cycles

Item:: Rocker Switch

Rating:: 20A 125VAC;16A 250VAC

Function:: ON OFF

Housing Color:: Black,White

Button Color:: Red Yellow Blue White Green

Lamp Voltage:: 3V/12V/24V/110V/220V

Material:: PA66

Terminal Type:: 6.3*0.8 Solder Terminal

Certificate:: CE,CQC,TUV

IP Rating:: IP40

Packaging & Delivery

Packaging Details: 50pcs/box, 1000pcs/carton

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 50	51 - 1000	>1000
Est. Time(days)	5	7	To be negotiated

Product Description

Item	KCD2-201N 16A 250VAC ON OFF 4Pin With Light Rocker Switch
Function	ON OFF
Rating	20A 125VAC;16A 250VAC
Contact Resistance	35mΩmax
Insulation Resistance	500VDC 1000MΩ Minute
Dielectric Strength	1500VAC,1 Minute
Operating Temperature	-25°C~+85°C
Electrical Life	≥10,000Cycles

KCD2-201N ON OFF With Light Rocker Switch:
Daier KCD2-201N on off rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

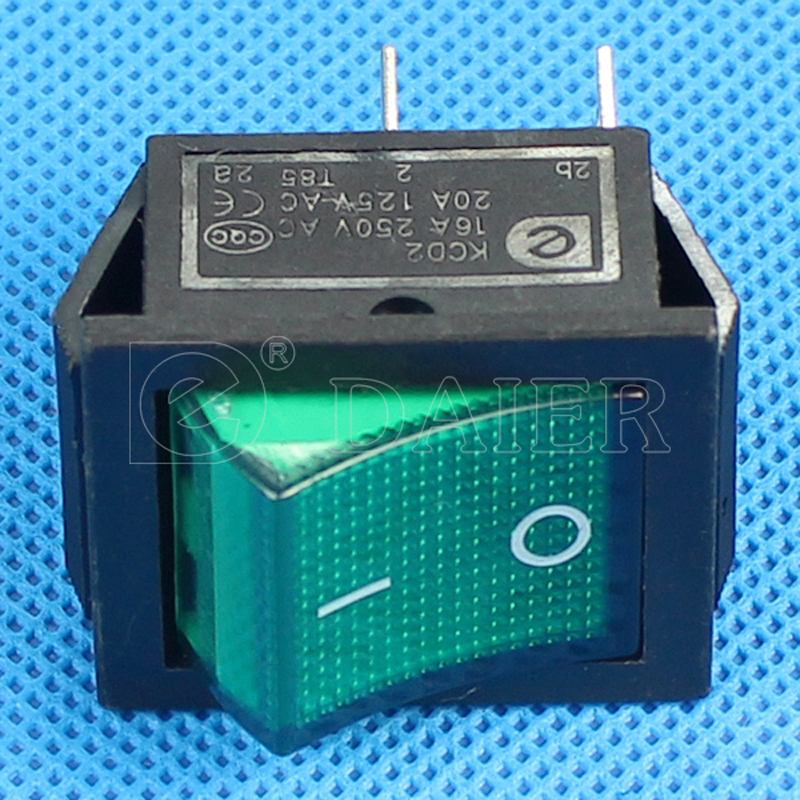

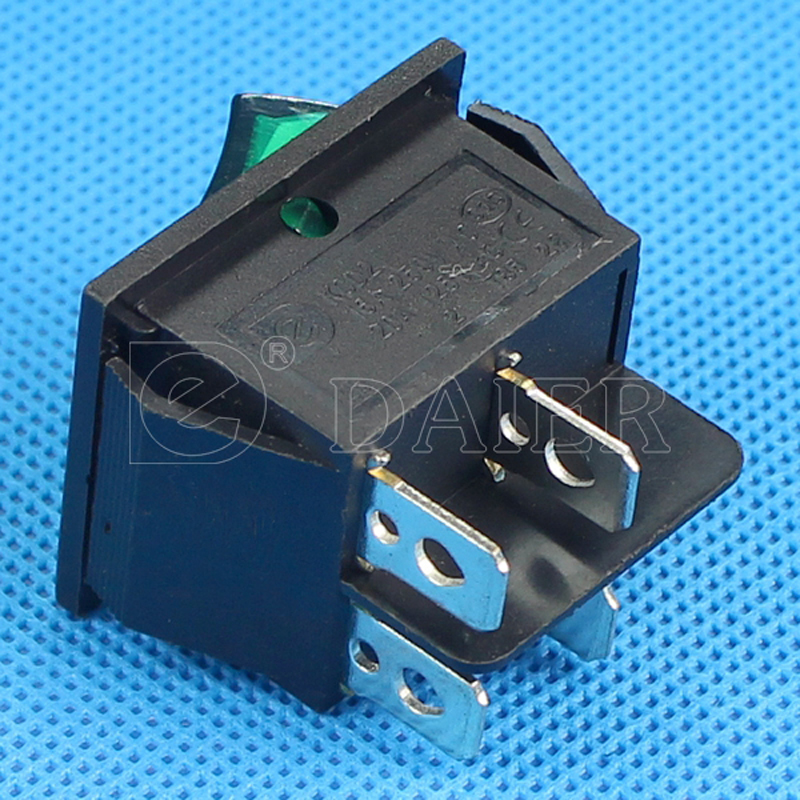

Product Show
