Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD5-3-101
- Max. Current:
- 6A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- Rocker Switch
- Model:
- KCD5-3-101
- Fuction:
- ON-OFF
- Rating:
- 3A 250VAC; 6A 125VAC
- Housing Color:
- Black
- Button Color:
- Black
- Terminal type:
- PCB Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:

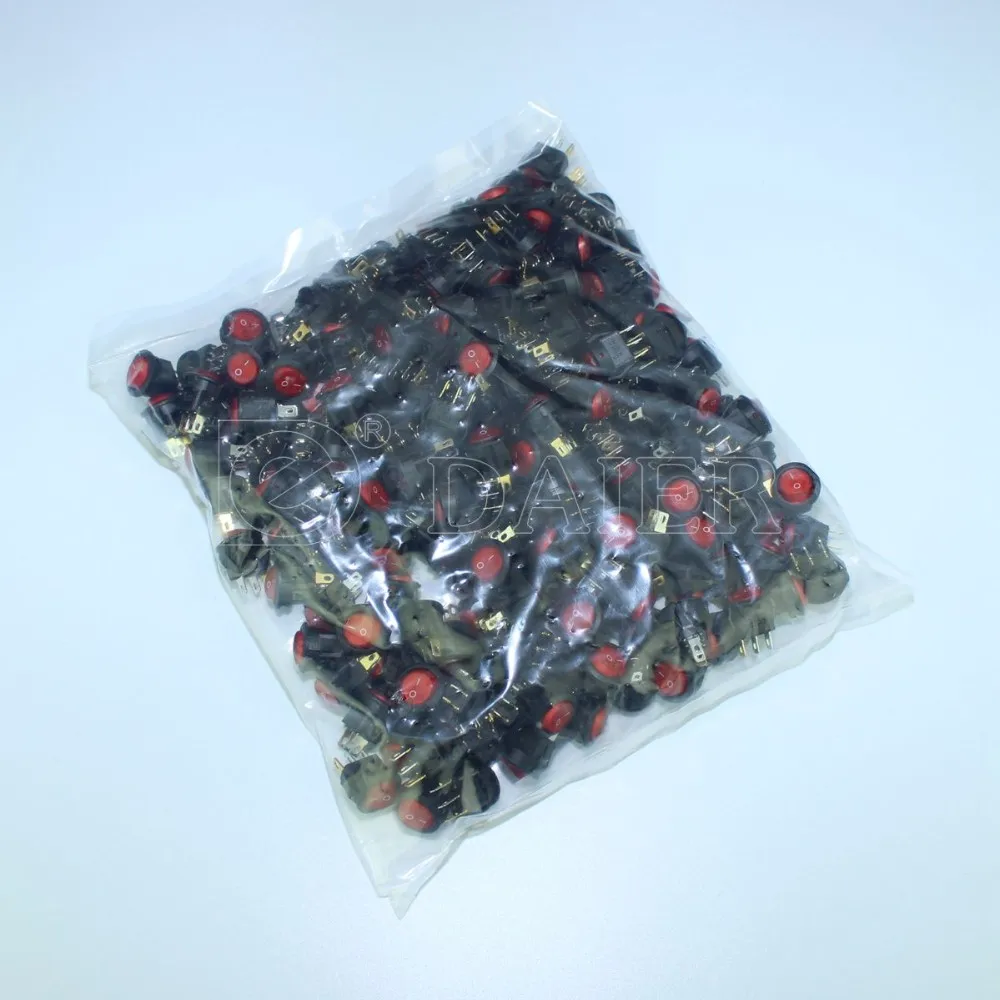

- 100pcs/box,1000pcs/carton of KCD5-3-101 T85 6A 125VAC 2PIN ON OFF PCB Rocker Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Description

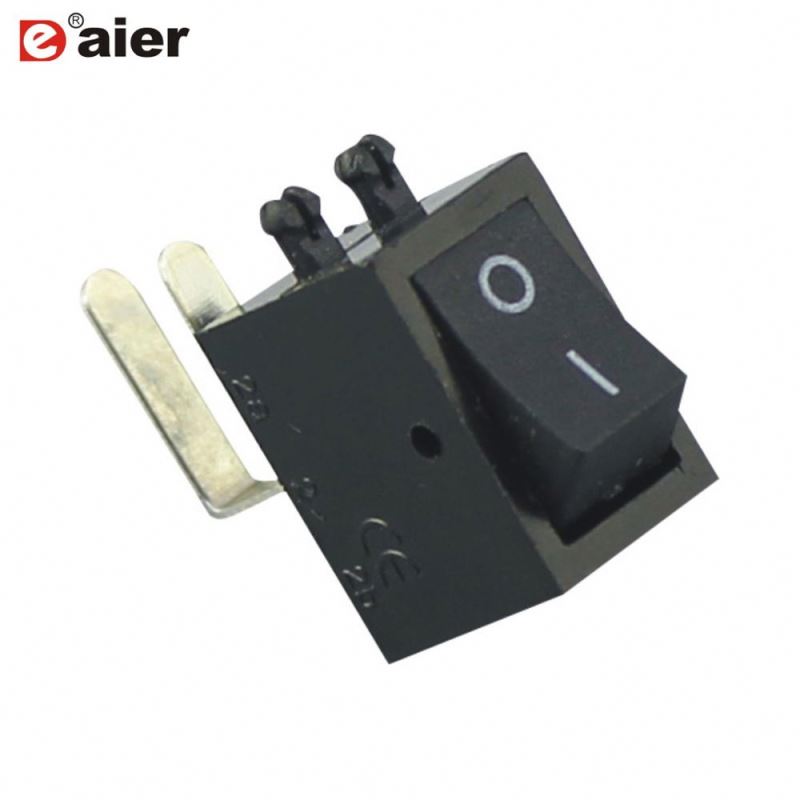

KCD5-3-101 KCD5 Rocker Switch:
Daier KCD5-3-101 on offsub-miniatur rocker switch offer a low switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
