Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD3-4-103
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles

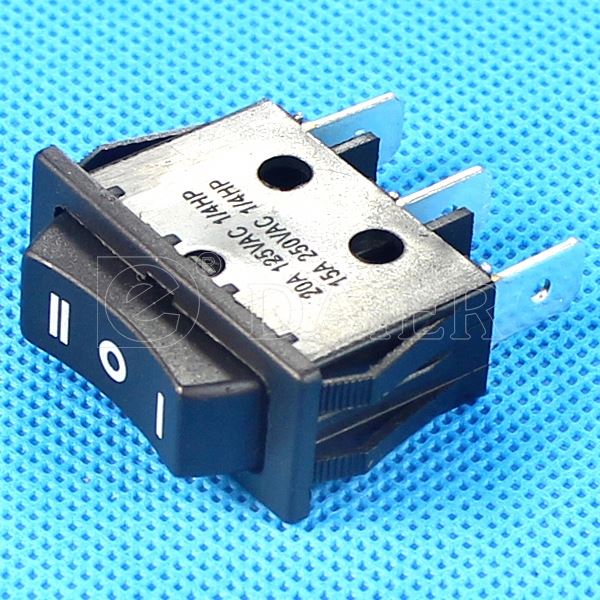

- Item:
- Rocker Switch
- Model:
- KCD3-4-103
- Fuction:
- ON-OFF-ON
- Rating:
- 15A 250VAC; 20A 125VAC
- Housing Color:
- Black
- Button Color:
- Black
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- 100pcs/box,1000pcs/carton of Single Pole Double Throw KCD3 T125 55 Rocker Switch 3 Position
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
