Home > Products > ON OFF Single Pole 16A 250V Rocker Switch 220V T125 With Solder Terminal
ON OFF Single Pole 16A 250V Rocker Switch 220V T125 With Solder Terminal
Click on the image to view the original image
Product： views：4ON OFF Single Pole 16A 250V Rocker Switch 220V T125 With Solder Terminal
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KCD2-2-201EN
Max. Current:
20A
Max. Voltage:
250VAC
Mechanical Life:
10000 Cycles
Item:
Rocker Switch
Model:
KCD2-2-201EN
Fuction:
ON-OFF
Rating:
16A 250VAC; 20A 125VAC
Housing Color:
Black
LED Color:
Red, Green, Blue
Terminal type:
Solder Terminals
Operating Temperature:
-25℃~+85℃
Certificate:
CE,CQC,TUV
Standard:
IEC Standard

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X15X7 cm
Gross weight per batch:
1.0 kg
Package Type:
100pcs/box,1000pcs/carton of ON OFF Single Pole 16A 250V Rocker Switch 220V T125 With Solder Terminal
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
lItem
ON OFF Single Pole 16A 250V Rocker Switch 220V T125 With Solder Terminal
Function
ON OFF 16a 24v rocker switch 250v t125
Rating
16A 250VAC; 20A 125VAC
Contact Resistance
< 35MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES

KCD2-2-201EN Green Illuminated Rocker Switch:

Daier KCD2-2-201EN on off rocker switch offer a high switching current in a compact design.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

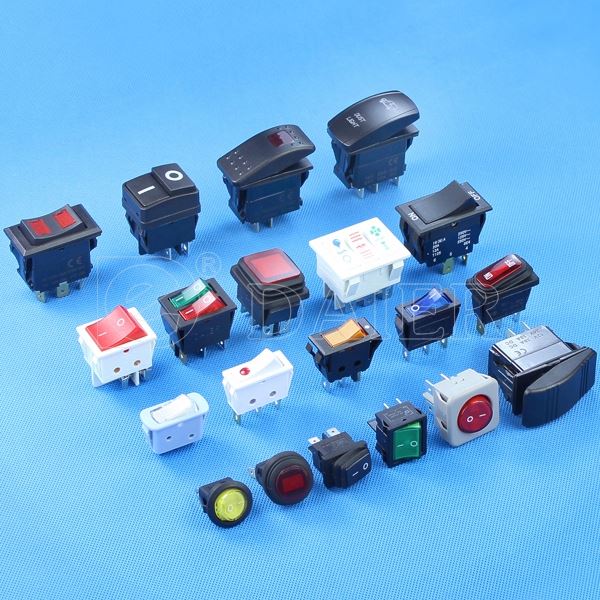

Product Show
