Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- GQ-8H-10M
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item:

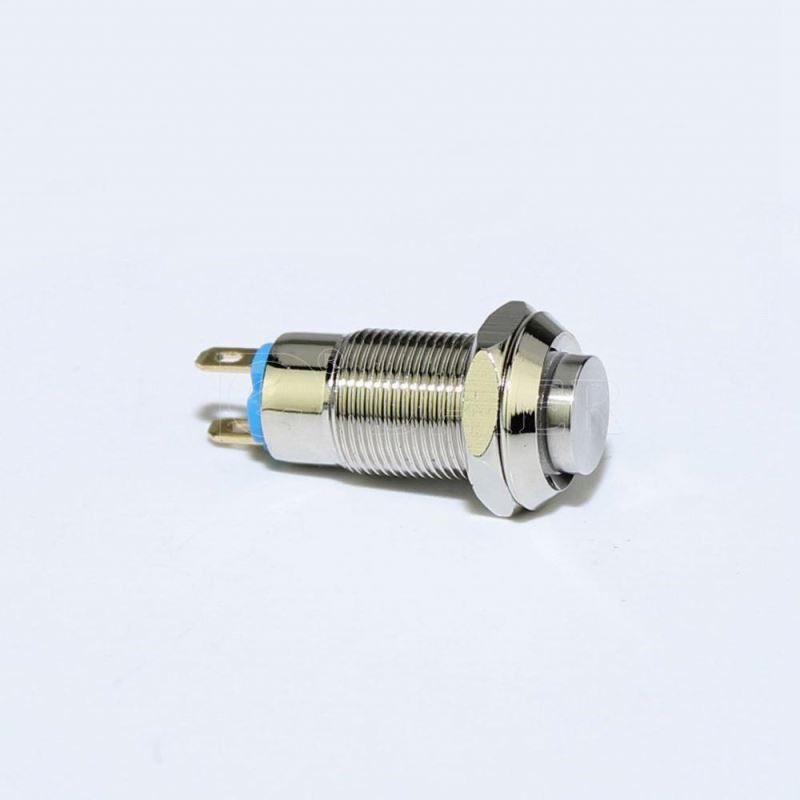

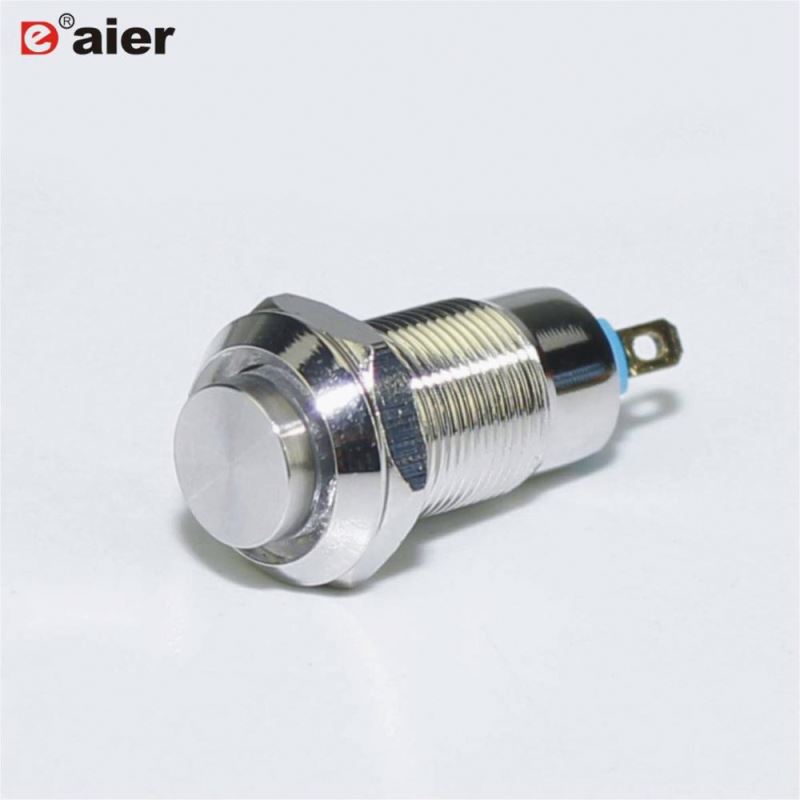

- Mini 8MM SPST 2 Pin Anti-vandal 2Position Momentary Push Button Switch
- Material:
- Stainless Steel
- Function:
- OFF-(ON)
- Panel Size:
- 8mm
- Housing Color:
- Silver
- Button Shape:
- High Round Button
- Terminal Type:
- Solder Terminal
- Free Sample:
- Available
- OEM&ODM:
- Accepted
- Operating Temperature:
- -25℃~+85℃
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:
- 100pcs A Box Of Mini 8MM SPST 2 Pin Anti-vandal 2Position Momentary Push Button Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
Product Description
Product Show
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
The waterproof push button switch are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.
We can"t talk out their advantage in a few words, but they are more and more popular in the world.
