Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- GQ40F-22M
- Protection Level:
- IP67, IP67
- Max. Current:
- 5A, 5A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- 40mm Metal Flat Button 2NO2NC Momentary Waterproof Big Push Button
- Material:
- Metal
- Function:
- Momentary
- LED:
- without
- Housing Color:
- Sliver/Black
- Electrical Life:
- 100,000Cycles
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 18X15X5 cm
- Gross weight per batch:
- 1.6 kg
- Package Type:
- 8pcs/box of 40mm Metal Flat Button 2NO2NC Momentary Waterproof Big Push Button
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 800 >800 Est. Time(days) 7 To be negotiated
Product Description
Product Show
GQ40F-22M

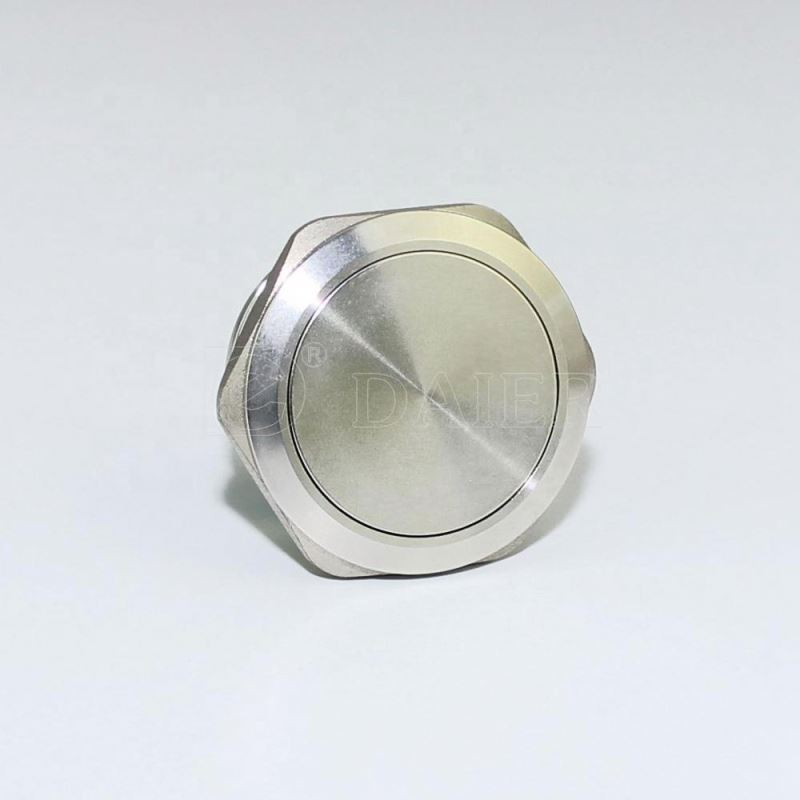

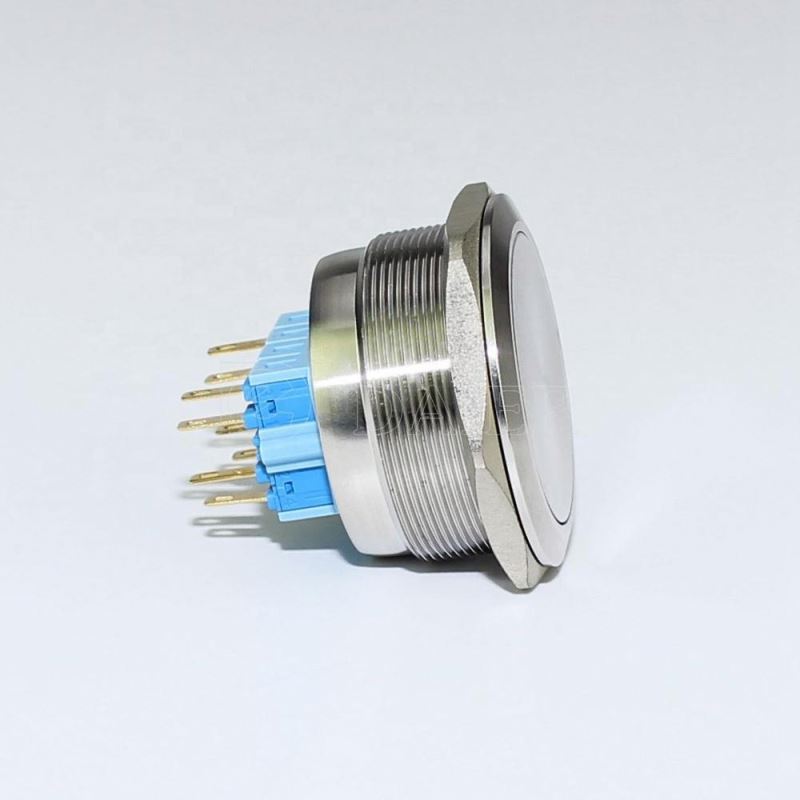

40mm Metal Flat Button 2NO2NC Momentary Waterproof Big Push Button
Specifications:
1. Rating: 5A 250V
2. Function: Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 100,000 Cycles
8. Operating Force: 5.5N
Push Button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
Related Roducts
LAS3 SERIES
GQ25F-11EP
L19 Series
Application
Company Information
Our Factory
Our Certifications
Our Advantage
40mm Metal Flat Button 2NO2NC Momentary Waterproof Big Push Button
