Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- GQ22F-11DM
- Protection Level:
- IP67, IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

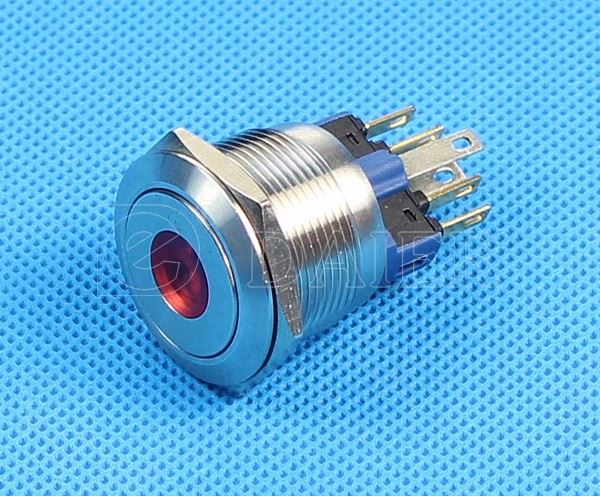

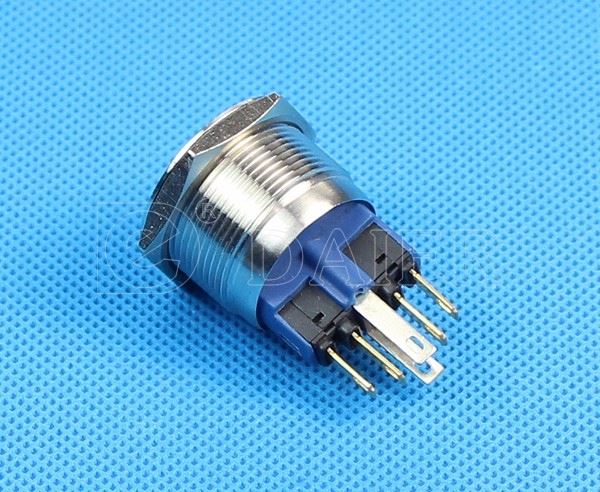

- 22mm Flat Pushbutton with LED Screw Terminal
- Material:
- Metal
- Function:
- SPDT Momentary
- Panel Size:
- 22mm
- Led Button Color:
- Red/ Green/Yellow/Blue/White/Orange
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 40pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.8 kg
- Package Type:
- GQ22F-11D 22mm Flat Pushbutton with LED Screw Terminal is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 400 >400 Est. Time(days) 7 To be negotiated
GQ22F-11D
Specifications:
1. Rating: 5A 250VAC
2. Function: Momentary
3. Contact Configuration: SPDT
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: AC 2000V 1 Minute
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles Min
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
