Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- L19F-11NM/L
- Protection Level:
- IP67, IP67
- Max. Current:
- 5A, 5A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- IP67 NO NC Bi-Color 12V Push Button Switch
- Material:
- Plastic
- Function:
- Momentary/Latching
- LED Color:
- Red/Yellow/Green/Blue/White
- Housing Color:
- Sliver/Black
- Electrical Life:
- 100,000Cycles
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 18X15X5 cm
- Gross weight per batch:
- 0.8 kg

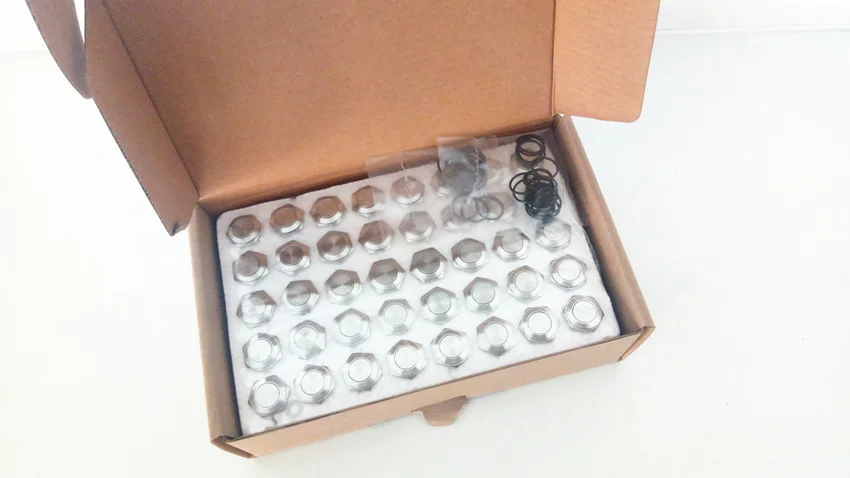

- Package Type:
- 40pcs/box of IP67 NO NC Bi-Color 12V Push Button Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 4000 >4000 Est. Time(days) 7 To be negotiated
Product Description
Product Show
L19F-11NM/L
IP67 NO NC Bi-Color 12V Push Button Switch
Specifications:
1. Rating: 5A 250V
2. Function: Momentary/Latching
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 100,000 Cycles
8. Operating Force: 5.5N
Push Button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
