Home > Products > 16mm Hole Size Flat Button Dot Lighted Momentary Metal Push Button Switch

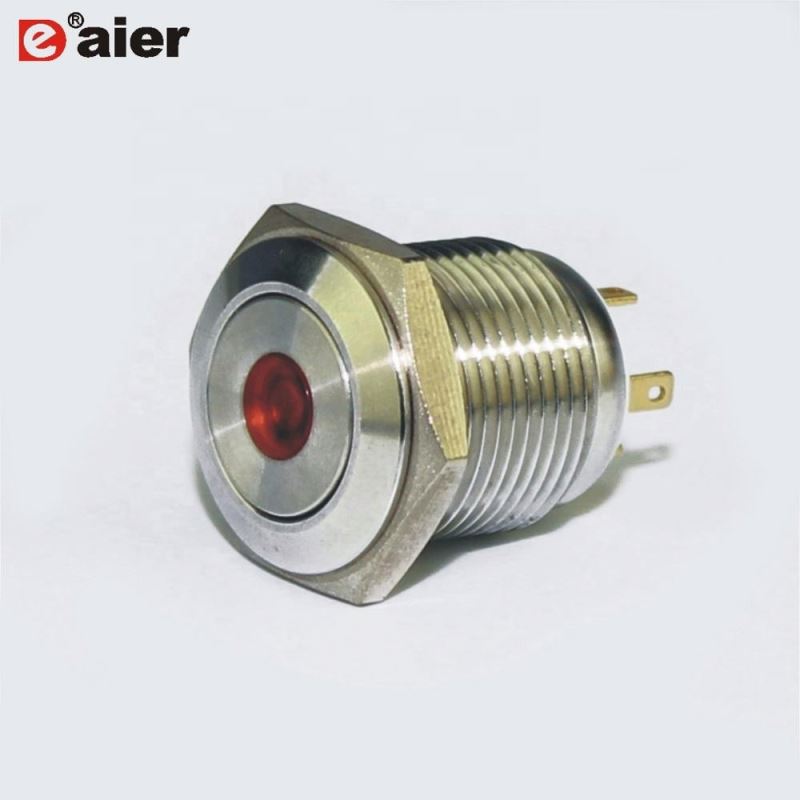

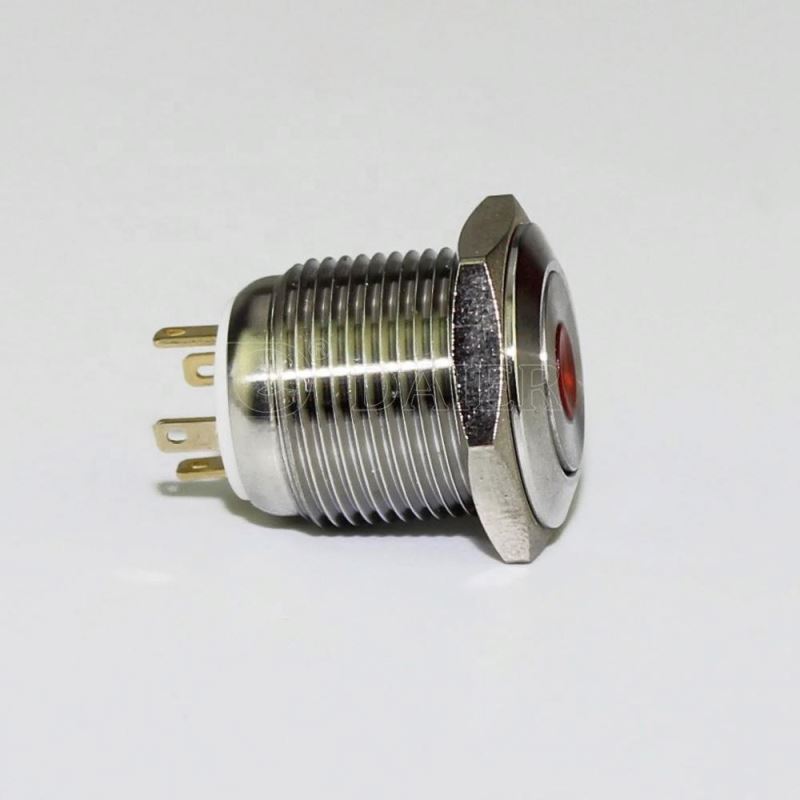

16mm Hole Size Flat Button Dot Lighted Momentary Metal Push Button Switch
Click on the image to view the original image
Product： views：316mm Hole Size Flat Button Dot Lighted Momentary Metal Push Button Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
GQ16F-10DM
Protection Level:
IP65, IP65
Max. Current:
3A, 3A
Max. Voltage:
250VAC, 250VAC
Item:
16mm Flat Button Dot Lighted Momentary Metal Push Button Switch
Material:
Metal
Function:
Momentary
Certificate:
CE,Rohs
Electrical Life:
100,000Cycles
OEM&ODM:
YES
Free Sample:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X15X4 cm
Gross weight per batch:
1.4 kg
Package Type:
40PCS/BOX for 16mm Hole Size Flat Button Dot Lighted Momentary Metal Push Button Switch
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 4000>4000
Est. Time(days)7To be negotiated
Product Description
Model
GQ16F-10D
Operation Type
Momentary
Crust Material
metal
Degree of Protection
IP65
Contact Type
1 NO
Maximum Voltage
250VAC
Thermal Current
3A
Minimum Applicable Load
5V AC/DC,1mA
Contact Material
Silver Plated
Terminal Style
.110" Solder/Quick Connect
Operating Temperature
-25°C ~+55°C
Operating Humidity
45%~85% RH
Contact Resistance
50mΩ max.
Insulation Resistance
100mΩmin. (500V DC megger )
Vibration Resistance
10~55HZ, amplitude 1.2mm p-p
Degree of Protection
>10g
Electrical Life
100,000 operations min. (at full rated load)
Mechanical Life
Maintained:1,000,000 operations min.
Momentary:1,000,000 operations min.
Dielectrical Life
Switch Unit: 2,000VAC,1 minute between terminals of same pole;
1,000VAC,1minute between contact and lamp terminals.
Illumination Unit:2,000VAC,1min. Between live part/ground
Soldering Temperature
20W/5 seconds or 260 °C/3 seconds
