Home > Products > 16mm Ring Lighted 220V Waterproof Switch Motorcycle Float Switch

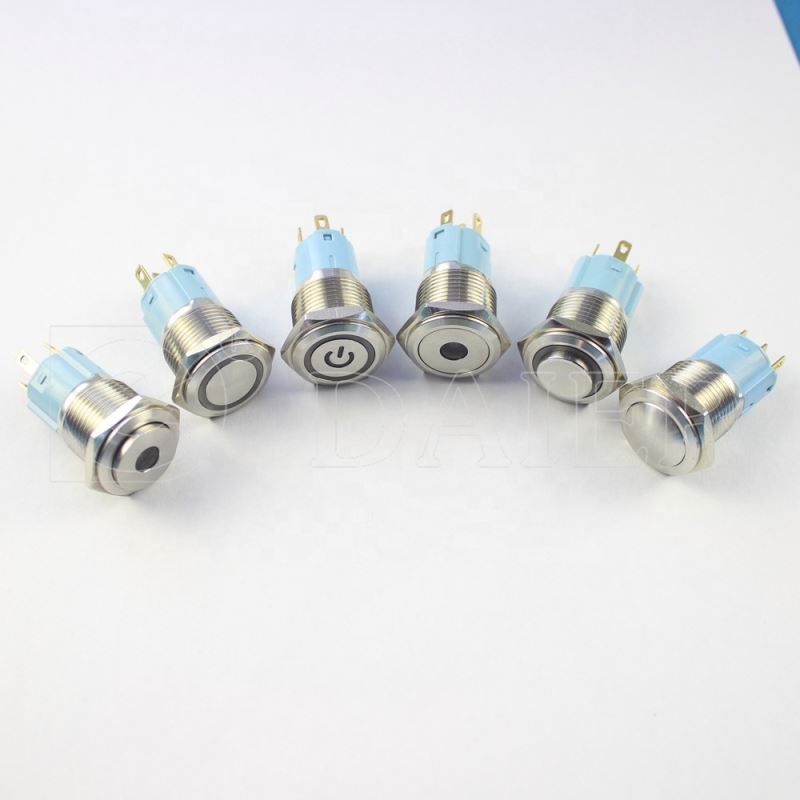

16mm Ring Lighted 220V Waterproof Switch Motorcycle Float Switch
Click on the image to view the original image
Product: views:216mm Ring Lighted 220V Waterproof Switch Motorcycle Float Switch
Branch: Daier
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
LAS3-16H-11E
Protection Level:
IP67, IP67
Max. Current:
3A, 3A
Max. Voltage:
250VAC, 250VAC
Item:
16mm Ring Lighted 220V Waterproof Switch Motorcycle Float Switch
Material:
Metal
Function:
Momentary/Latching
Certificate:
CE,Rohs
Electrical Life:
100,000Cycles
OEM&ODM:
YES
Free Sample:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
XX cm
Gross weight per batch:
0.8 kg
Package Type:
40PCS/BOX
Picture Example:
package-img
package-img
Lead Time:
Quantity(Piece)1 - 4000>4000
Est. Time(days)7To be negotiated
Product Description
Model
LAS3-16H-11E
Operation Type
Momentary/Latching
Crust Material
metal
Degree of Protection
IP67
Contact Type
1 NO /1NC
Maximum Voltage
250VAC
Thermal Current
3A
Minimum Applicable Load
5V AC/DC,1mA
Contact Material
Silver Plated
Terminal Style
.110" Solder/Quick Connect
Operating Temperature
-25°C ~+55°C
Operating Humidity
45%~85% RH
Contact Resistance
50mΩ max.
Insulation Resistance
100mΩmin. (500V DC megger )
Vibration Resistance
10~55HZ, amplitude 1.2mm p-p
Degree of Protection
>10g
Electrical Life
100,000 operations min. (at full rated load)
Mechanical Life
Maintained:1,000,000 operations min.
Momentary:1,000,000 operations min.
Dielectrical Life
Switch Unit: 2,000VAC,1 minute between terminals of same pole;
1,000VAC,1minute between contact and lamp terminals.
Illumination Unit:2,000VAC,1min. Between live part/ground
Soldering Temperature
20W/5 seconds or 260 °C/3 seconds
