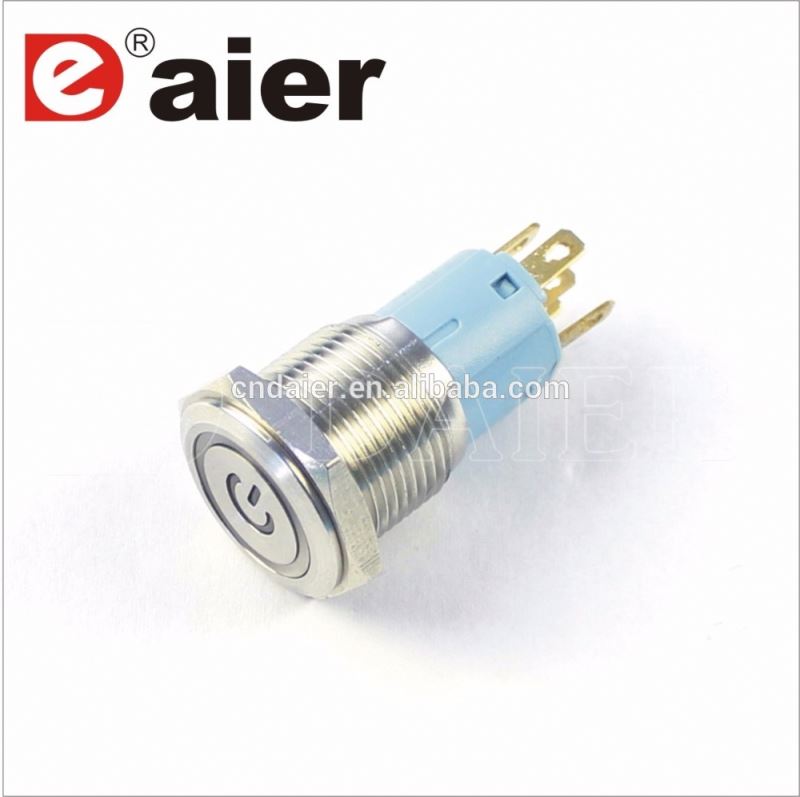

LAS3-16F-11EP 16mm Power Mark LED Push Button Switch
TECHNICAL DATASHEET
Whether with LED | With LED |
Operation Type | Momentary/Latch |
Crust Material | Stainless Steel/Copper Plated Ni/Aluminium/Copper Plated Cr/Copper Plated with Black |
Color | Metal |
Degree of Protection | IP65 |
Contact Type | 1NO /1NC |
Maximum Voltage | 250VAC |
Thermal Current | 3A |
Minimum Applicable Load | 5V AC/DC,1mA |
Contact Material | Silver Plated |
Terminal Style | .110” Solder/Quick Connect |
Operating Temperature | -25°C ~+55°C |
Operating Humidity | 45%~85% RH |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100mΩ min. (500V DC megger ) |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Degree of Protection | >10g |
Electrical Life | 100,000 operations min. (at full rated load) |
Mechanical Life | Maintained:1,000,000 operations min. Momentary:1,000,000 operations min. |
Dielectrical Life | Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
