12mm Latching Metal IP68 Waterproof Push Button With Self Locking LED

Click on the image to view the original image

Product：	views：312mm Latching Metal IP68 Waterproof Push Button With Self Locking LED
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: GQ12H-10EL

Protection Level:: IP67

Max. Current:: 2A

Max. Voltage:: 36VDC

Item:: 12mm Latching Metal IP68 Waterproof Push Button With Self Locking LED

Function:: 1NO Latching

Panel Size:: 12mm

Led Button Color:: Red/ Green/Yellow/Blue/White/Orange

Button Shape:: High Button

IP Class:: IP67

Terminal Type:: Soldering Terminal

Certificate:: CE, Rohs, CQC

OEM&ODM:: YES

Package:: 50pcs/box

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X15X10 cm

Gross weight per batch:: 1.2 kg

Package Type:: GQ12H-10EL 12mm Latching Metal IP68 Waterproof Push Button With Self Locking LED is 50pcs/box.

Picture Example:

Lead Time:

Quantity(Piece)	1 - 5000	>5000
Est. Time(days)	7	To be negotiated

Product Description

Model	12mm Latching Metal IP68 Waterproof Push Button With Self Locking LED
Rating	2A 36VDC
Function	1NO Latching
Button Size	12mm
Led Lamp Color Avaliable	Red/ Green/Yellow/Blue/Black/White

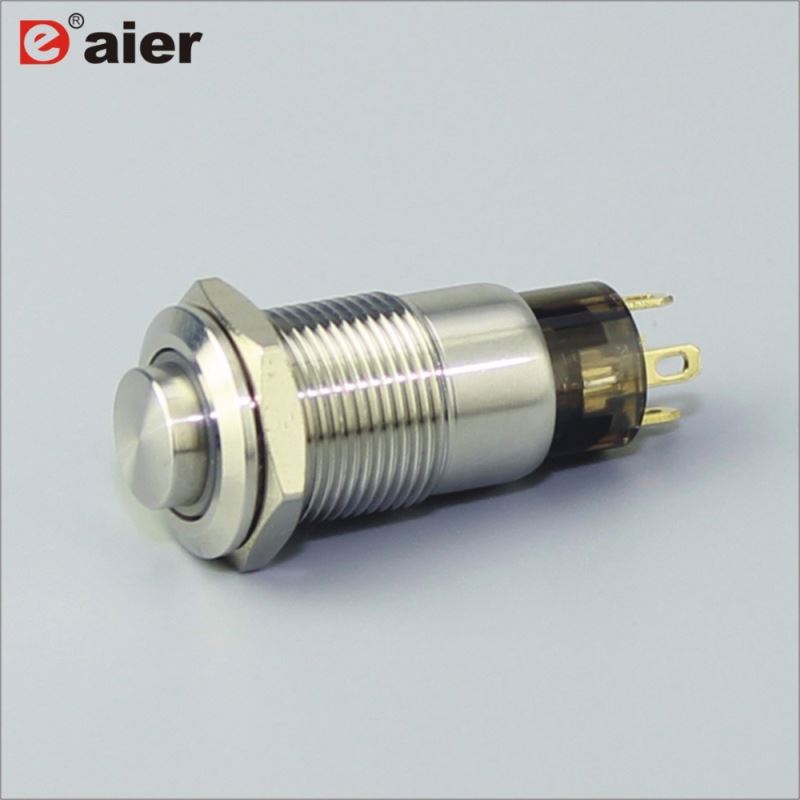

Product Show

GQ12H-10EL

Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: 1NO Latching

8. IP Class: IP67 protection

9. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
