- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- DS-12B-L
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item:
- 12mm Dome PCB Waterproof Push Button Switch 250v
- Material:
- Plastic
- Function:
- Latching Push Button Switch
- Panel Size:
- 12mm
- Button Color:
- Red/ Green/Yellow/Blue/Black/White
- IP Class:
- IP67
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 50pcs/box
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:

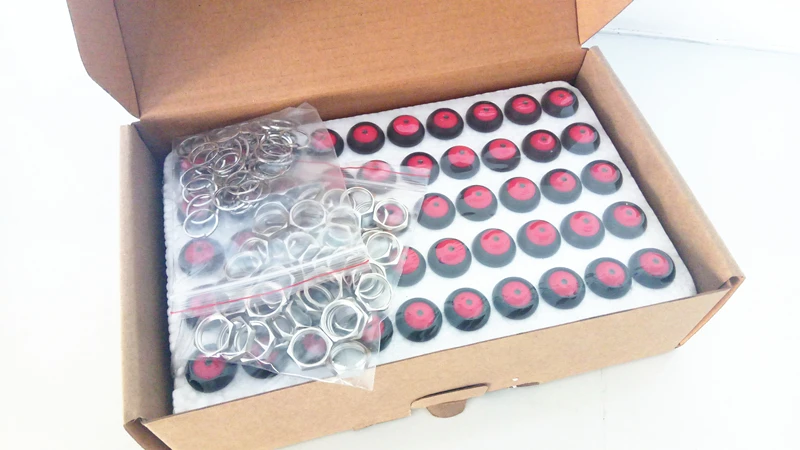

- DS-12B-L 12mm Dome PCB Waterproof Push Button Switch 250v is 50pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated

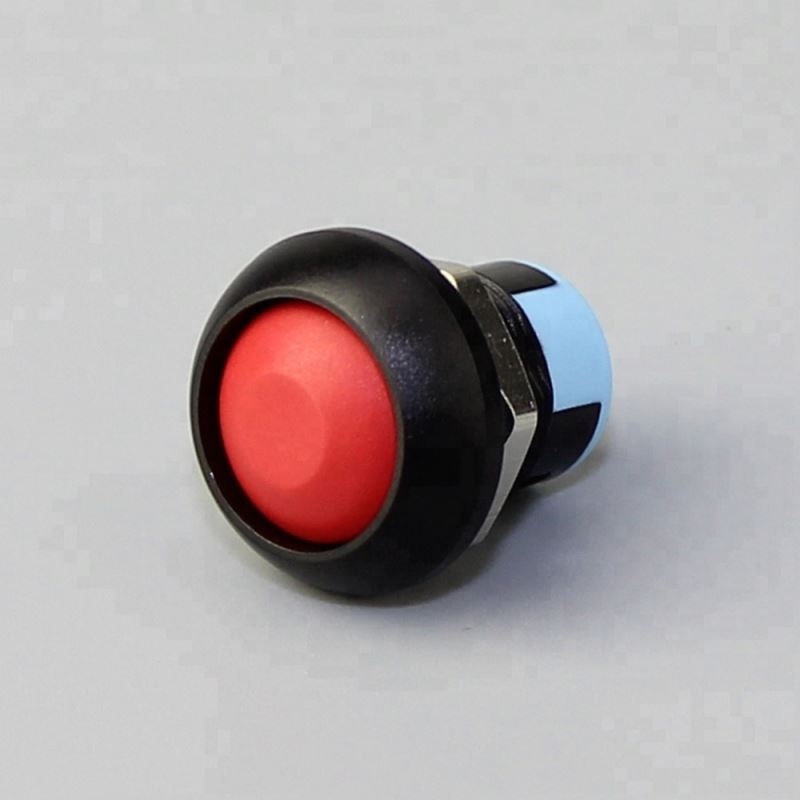

DS-12B-L
Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V AC RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: 1NO Latching Push Button Switch
8. IP Class: IP67 protection
9. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
