Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- L19F-11P-AA
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

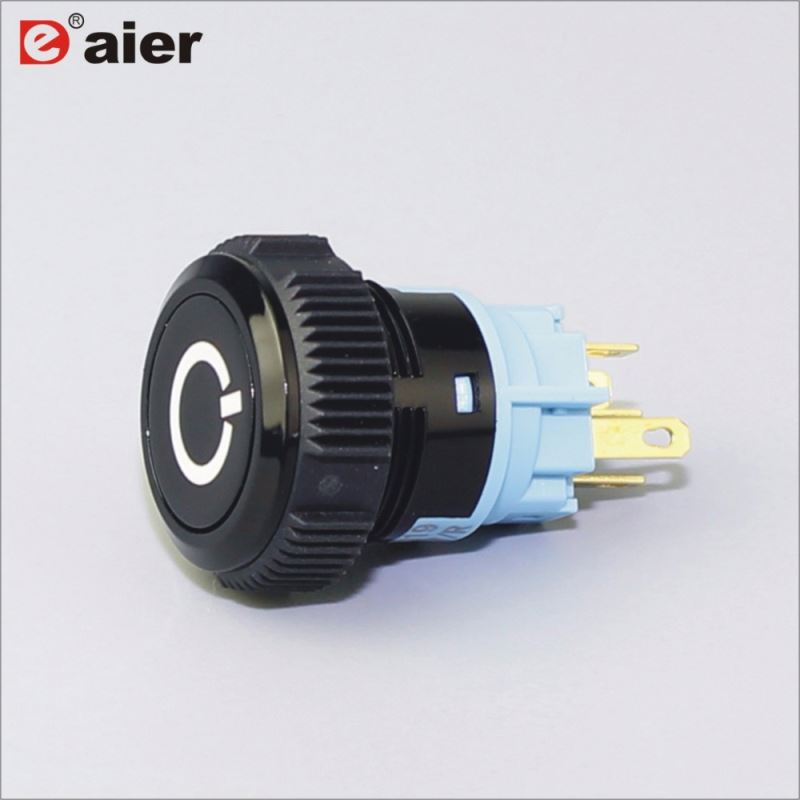

- 19mm Flat Button Power Logo SPDT IP67 Push Button Switch
- Function:
- SPDTMomentary/Latching
- Panel Size:
- 19mm
- Led Button Color:
- Red/ Green/Yellow/Blue/White/Orange
- Material:
- Plastic
- IP Class:
- IP67
- Operating Force:
- 5.5N
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 40pcs/box
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- L19F-11P-AA is 40pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 7 To be negotiated
L19F-11P-AA
Specifications:
1. Rating: 5A 250VAC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
