Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- L16F-11N
- Protection Level:
- IP67, IP67
- Max. Current:
- 5A, 5A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- 16MM IP67 Black Housing Button Illuminated Push Button Switch For Toys
- Material:
- Plastic
- Function:
- Momentary/Latching
- LED Color:
- Red/Yellow/Green/Blue/White
- Housing Color:
- Sliver/Black
- Electrical Life:
- 100,000Cycles
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 18X15X5 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:
- 40pcs/box of 16MM IP67 Black Housing Button Illuminated Push Button Switch For Toys
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 7 To be negotiated
Product Description
Product Show

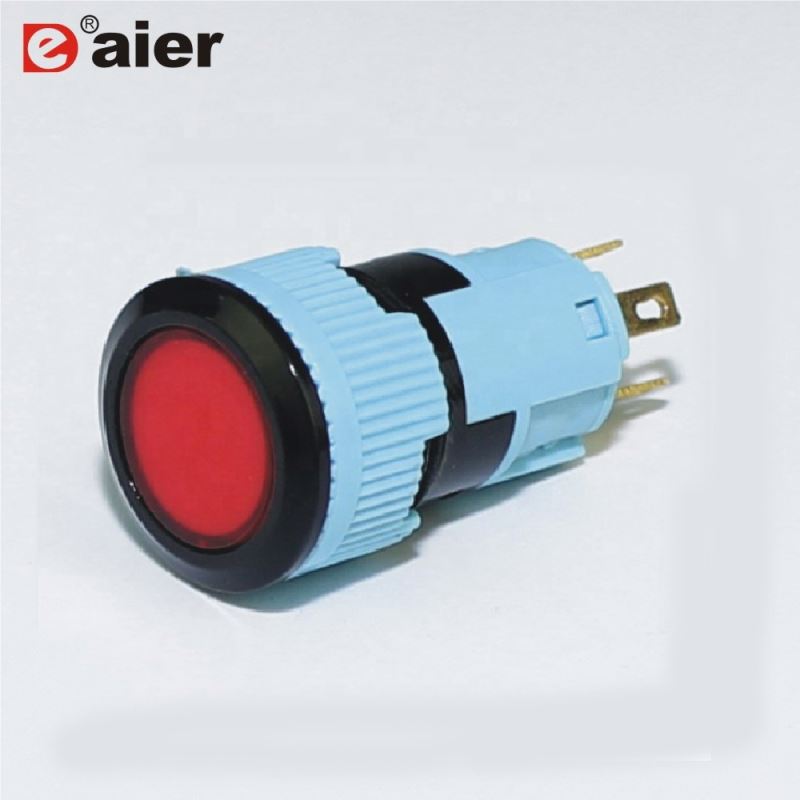

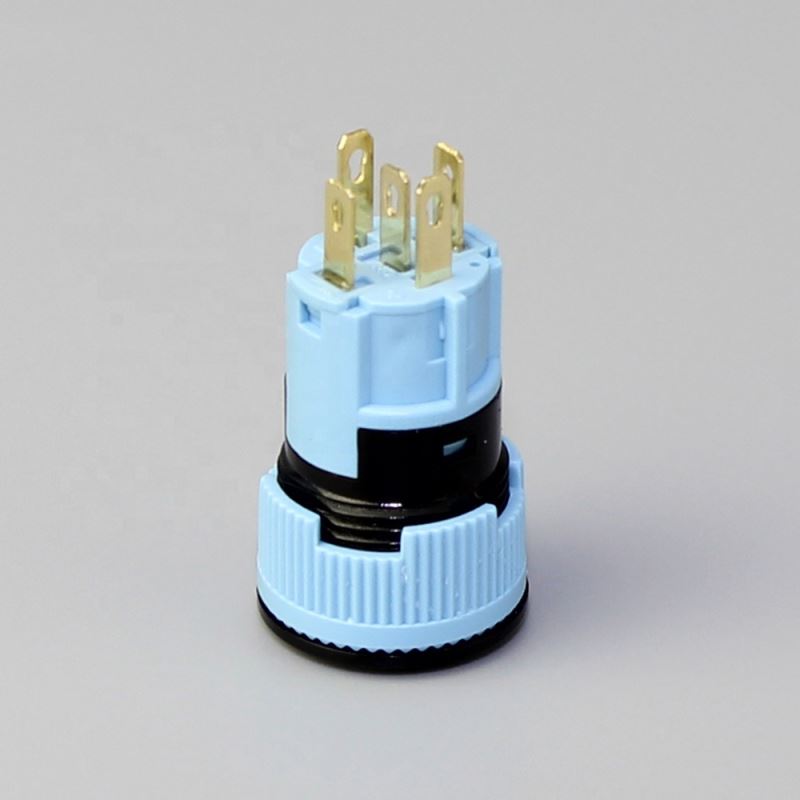

L16F-11N
16MM IP67 Black Housing Button Illuminated Push Button Switch For Toys
Specifications:
1. Rating: 5A 250V
2. Function: Momentary/Latching
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 100,000 Cycles
8. Operating Force: 5.5N
Push Button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
