- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- L12F-10N
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item:
- Miniature SPST Illuminated4 Pin 12mm Waterproof Mini Electric Switch
- Function:
- 1NO
- Panel Size:
- 12mm
- Led Button Color:
- Red/ Green/Yellow/Blue/White/Orange
- Button Shape:
- Flat Button
- IP Class:
- IP67
- Terminal Type:
- Soldering Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 50pcs/box
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.7 kg
- Package Type:
- 50pcs/box of Miniature SPST Flat Top Illuminated4 Pin 12mm Waterproof Mini Electric Switch

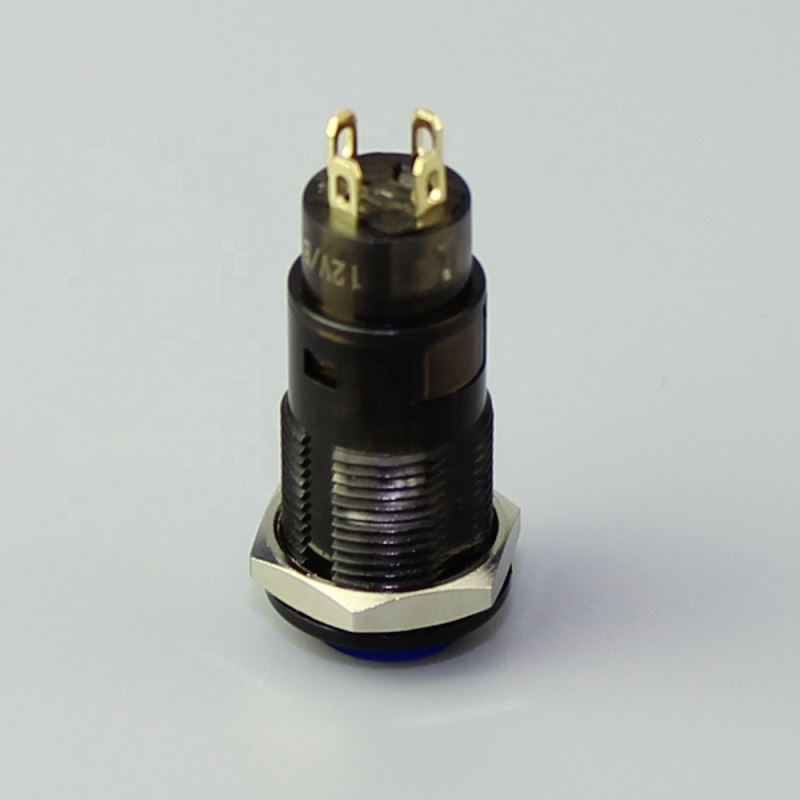

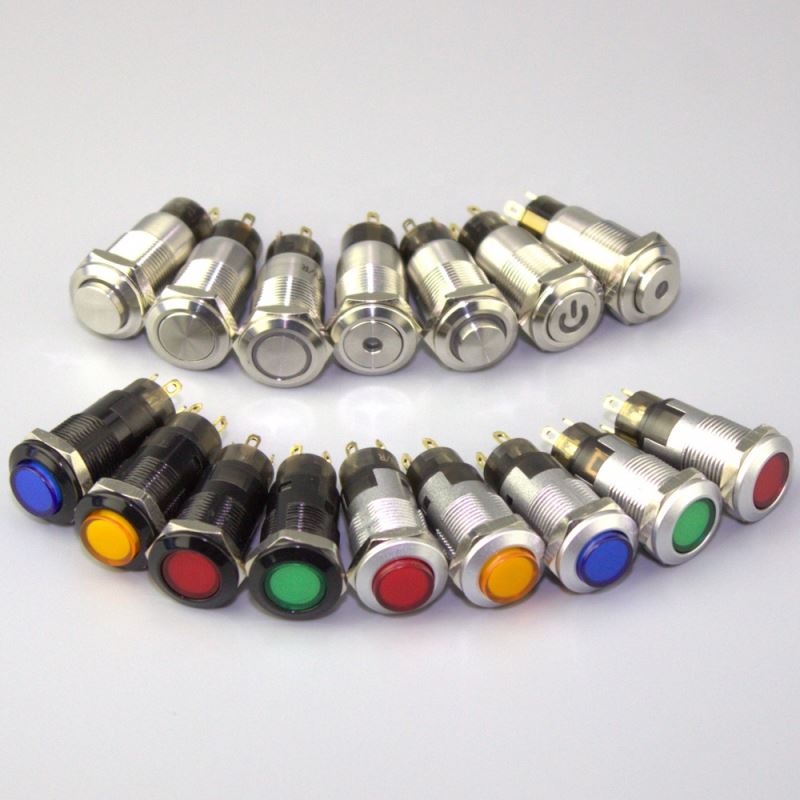

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 7 To be negotiated
L12F-10N
Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: 1NO Latching
8. IP Class: IP67 protection
9. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
