- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- DS-318
- Protection Level:
- IP40
- Max. Current:
- 1A
- Max. Voltage:
- 250V
- Product type:
- 220 Vlot MomentaryHand Held Push Button Switch
- Product name:
- DS-318
- Material:
- Plastic
- Function:
- OFF-(ON) Momentary
- Panel Size:
- 12mm
- Button Color:
- Red/ Green/Yellow/White/Black
- Terminal:
- 2 Pin, PCB Terminal
- Certificate:
- CE, Rohs
- OEM&ODM:
- YES
- Package:
- 100pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X5 cm
- Gross weight per batch:
- 0.6 kg
- Package Type:
- 100pcs/bag of 220 Vlot MomentaryHand Held Push Button Switch

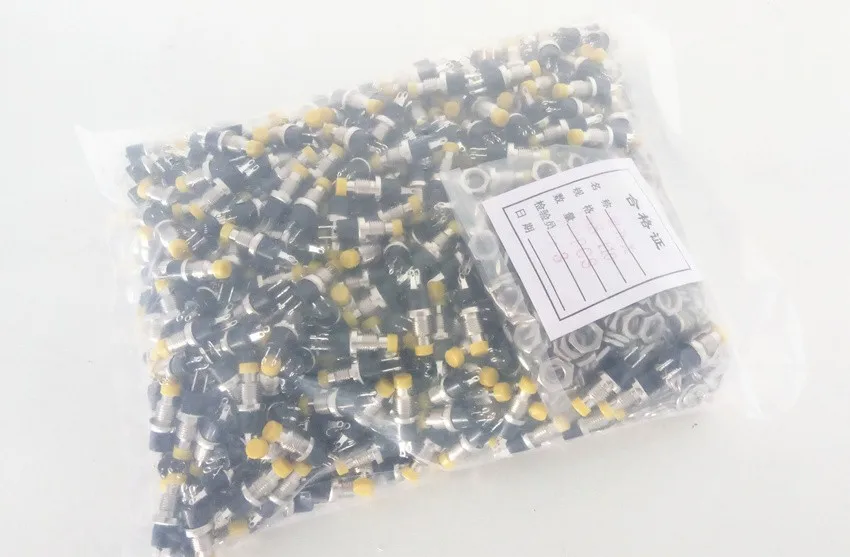

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated

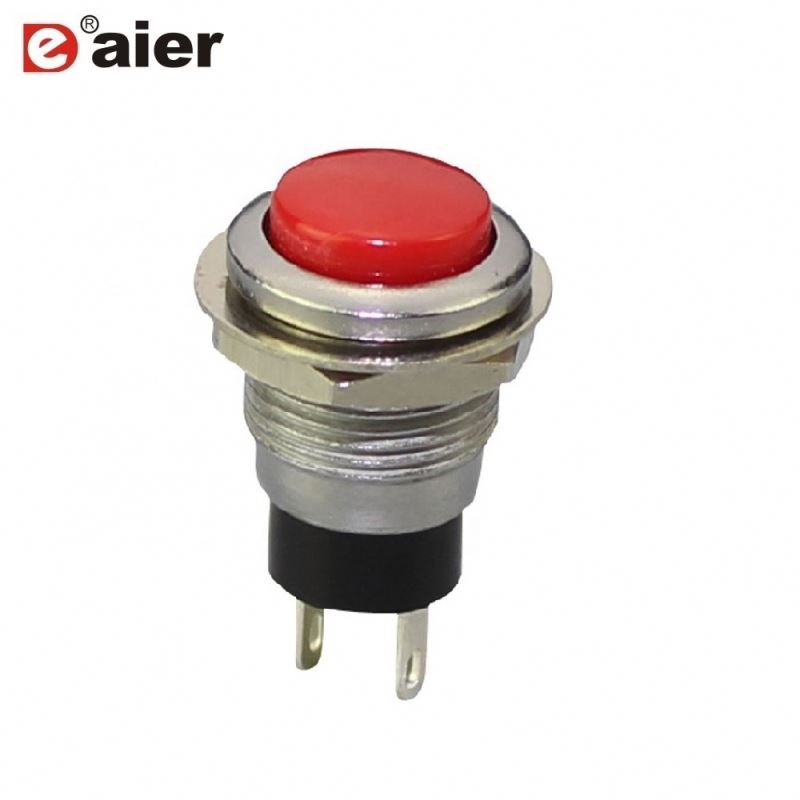

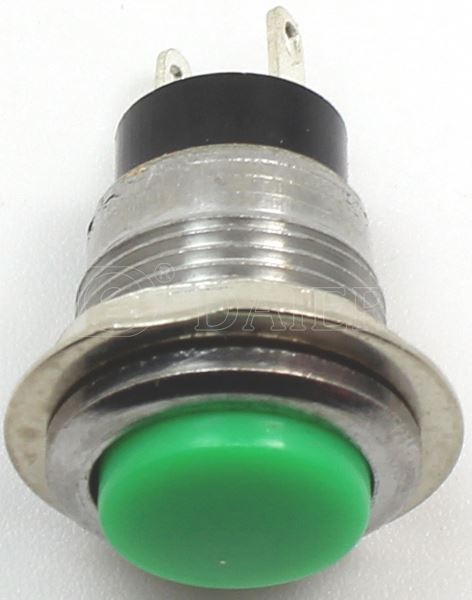

DS-318
Specifications:
1. Rating: 1A 250VDC
2. Electrical Life: 10,000 Cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min
6. Operating Temperature:-25°C~+85°C
7. Function: Momentary Push Button Switch
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
