Home > Products > Electric Illuminated Square Game Push Button Switch

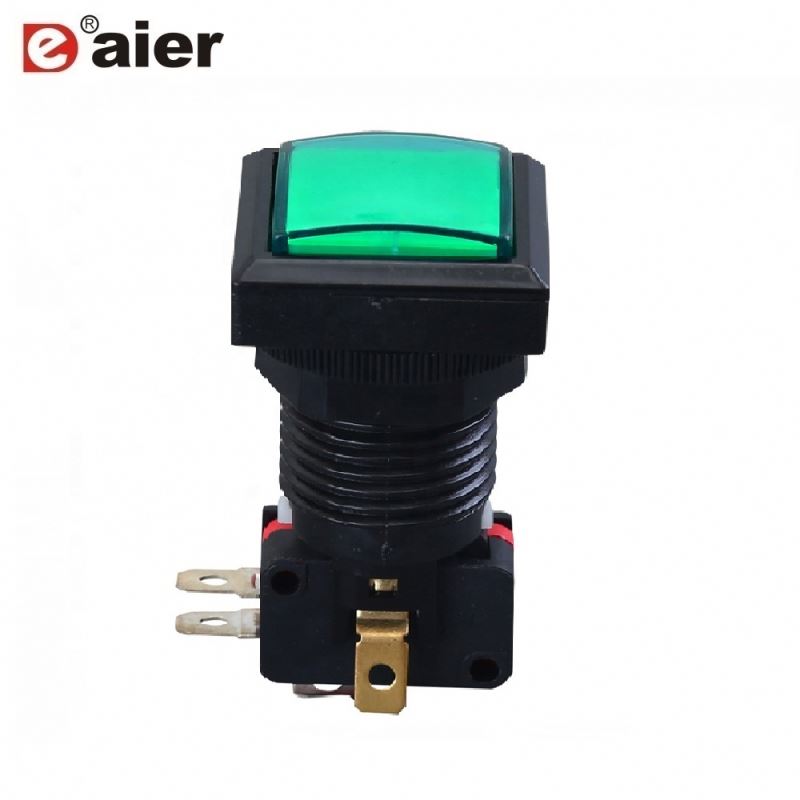

Electric Illuminated Square Game Push Button Switch
Click on the image to view the original image
Product： views：2Electric Illuminated Square Game Push Button Switch
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PBS-31
Protection Level:
IP40
Max. Current:
16A
Max. Voltage:
250V
Item:
Electric Illuminated Square Game Push Button Switch
Type:
Push Button Switch
Product name:
PBS-31
Rating:
16A 250V
Function:
Momentary
Mounting Size:
24mm
Button Color:
White/Green/Yellow/Red/Blue
Terminal:
6.3x0.8mm Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X15X5 cm
Gross weight per batch:
0.6 kg
Package Type:
20pcs/bag of Electric Illuminated Square Game Push Button Switch
Lead Time:
Quantity(Piece)1 - 20000>20000
Est. Time(days)7To be negotiated
Product Description
Model
PBS-31
Type
Electric Illuminated Square Game Push Button Switch
Rating
16A 250V
Mounting Size
24mm
Light
With Light
Terminal
2 Pin/3 Pin, Solder Terminal
Degree of Protection
IP40
Switch Color Avaliable
White/Red/Green/Yellow/Blue
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩmin. 500V DC
Dielectric Strength
AC 1500V  1 minute
Electrical Life
10,000 cycles min

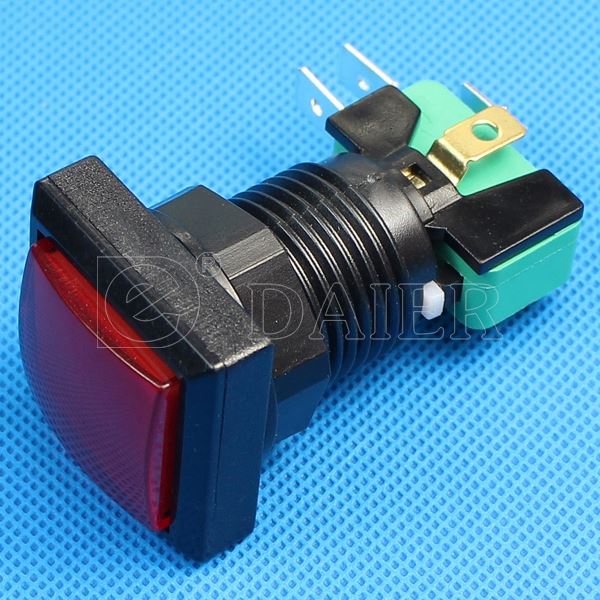

Product Show

PBS-31

Electric Illuminated Square Game Push Button Switch

Specifications:
1. Rating: 16A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Momentary Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
