16mm 5 Pin Solder Terminal Momentary 6V LED Push Button Switch

Click on the image to view the original image

Product：	views：316mm 5 Pin Solder Terminal Momentary 6V LED Push Button Switch
Branch：	Daier
Type：	Push Button Switch
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: A16-11SY-N

Protection Level:: IP40

Max. Current:: 3A

Max. Voltage:: 250V

Product type:: 16mm 5 Pin Solder TerminalMomentary 6V LED Push Button Switch

Type:: Push Button Switch

Product name:: A16-11SY-N

Rating:: 3A 250V

Function:: ON-(ON)

Panel Size:: 16mm

Light Color:: Red/ Yellow/Green/Blue/White

Terminal:: Solder Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 15X10X5 cm

Gross weight per batch:: 0.6 kg

Package Type:: 40pcs/box of 16mm 5 Pin Solder TerminalMomentary 6V LED Push Button Switch

Lead Time:

Quantity(Piece)	1 - 1000	>1000
Est. Time(days)	7	To be negotiated

Product Description

Model	A16-11SY-N
Type	16mm 5 Pin Solder TerminalMomentary 6V LED Push Button Switch
Rating	3A 250V
Button Size	16mm
Function	ON-(ON)
Light	With Light
Terminal	5 Pin, Solder Terminal
Degree of Protection	IP40
Light Color Avaliable	Red/ Yellow/Green/Blue/White
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩ min. 500V DC
Dielectric Strength	AC 1500V1 minute
Electrical Life	10,000 cycles min

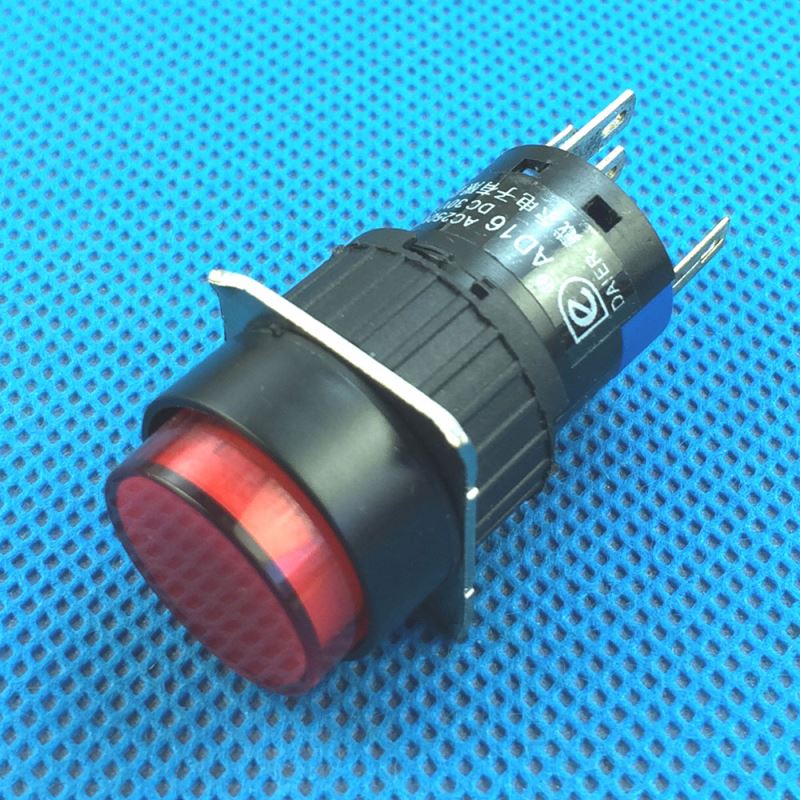

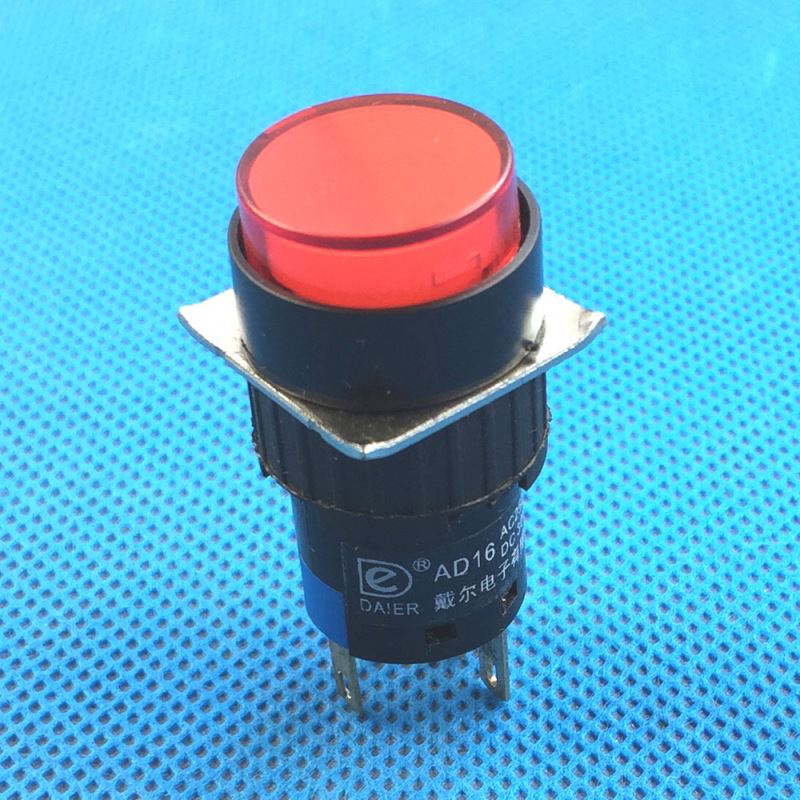

Product Show

A16-11ZY-N

16mm 5 Pin Solder TerminalMomentary 6V LED Push Button Switch

Specifications:
1. Rating: 3A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function:Momentary Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
