ON OFF Push Lock Mini Micro Push Button Switch
Click on the image to view the original image
Product： views：2ON OFF Push Lock Mini Micro Push Button Switch
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
TV-3-A
Protection Level:
IP40
Max. Current:
5A
Max. Voltage:
250V
Product type:
ON OFF Push Lock Mini Micro Push Button Switch
Type:
Push Button Switch
Product name:
TV-3-A
Rating:
5A 250V
Function:
ON-OFF
Button Color:
White
Terminal:
6 Pin, PCB
Certificate:
CE, Rohs
OEM&ODM:
YES
Packing:
100pcs/bag

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X5 cm
Gross weight per batch:
0.7 kg
Package Type:
100pcs/bag of ON OFF Push Lock Mini Micro Push Button Switch
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Model
TV-3-A
Type
ON OFF Push Lock Mini Micro Push Button Switch
Rating
5A 250V
Function
ON-OFF
Terminal
2Pin, Solder Terminal
Degree of Protection
IP40
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩmin. 500VDC
Dielectric Strength
AC 500V  1 minute
Electrical Life
10,000 cycles min
Product Show

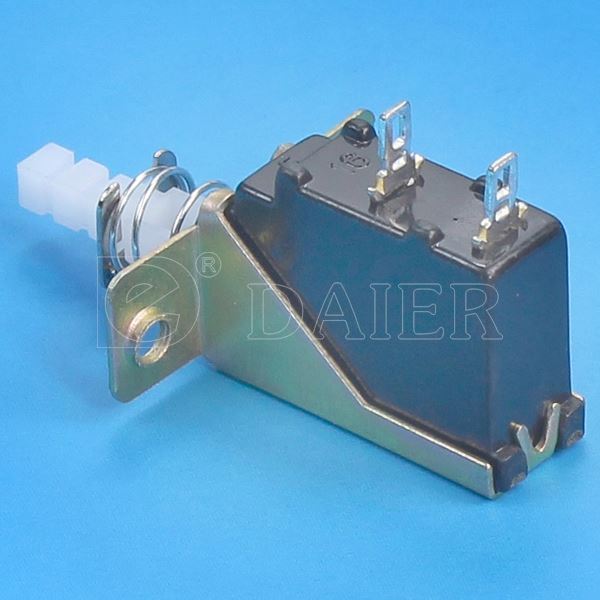

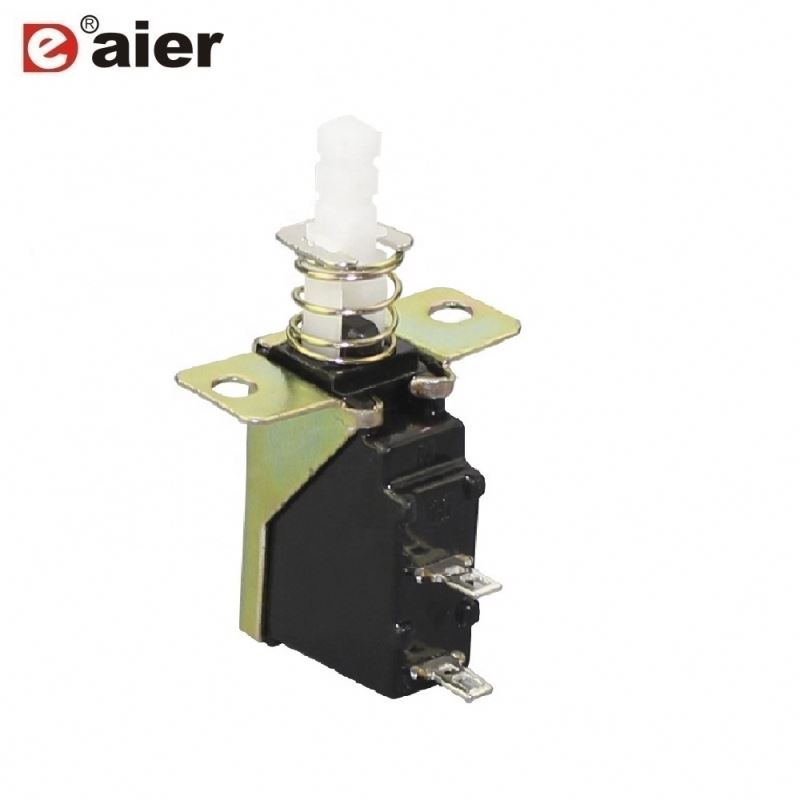

TV-3-A

ON OFF Push Lock Mini Micro Push Button Switch

Specifications:
1. Rating: 5A 250V
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength: 500V AC 1min

6. Operating Temperature:-25°C~

7. Function: Latching Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
