Home > Products > 3 Position Double Pole Double Throw Push Select Switch
3 Position Double Pole Double Throw Push Select Switch
Click on the image to view the original image
Product： views：23 Position Double Pole Double Throw Push Select Switch
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
A16-22ZX3
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250V
Product type:
3 Position Double Pole Double Throw Push Select Switch
Type:
Push Button Switch
Product name:
A16-22ZX3
Rating:
3A 250V
Function:
DPDT
Panel Size:
16mm
Terminal:
Solder Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES
Packing:
30pcs/box

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X10X5 cm
Gross weight per batch:
0.7 kg
Package Type:
30pcs/box of 3 Position Double Pole Double Throw Push Select Switch
Lead Time:
Quantity(Piece)1 - 30000>30000
Est. Time(days)7To be negotiated
Product Description
Model
A16-22ZX3
Type
3 Position Double Pole Double Throw Push Select Switch
Rating
3A 250V
Button Size
16mm
Function
DPDT
Light
Without Light
Terminal
6 Pin,  Solder Terminal
Degree of Protection
IP40
Light Color Avaliable
Red
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩ min. 500V DC
Dielectric Strength
AC 1500V1 minute
Electrical Life
10,000 cycles min

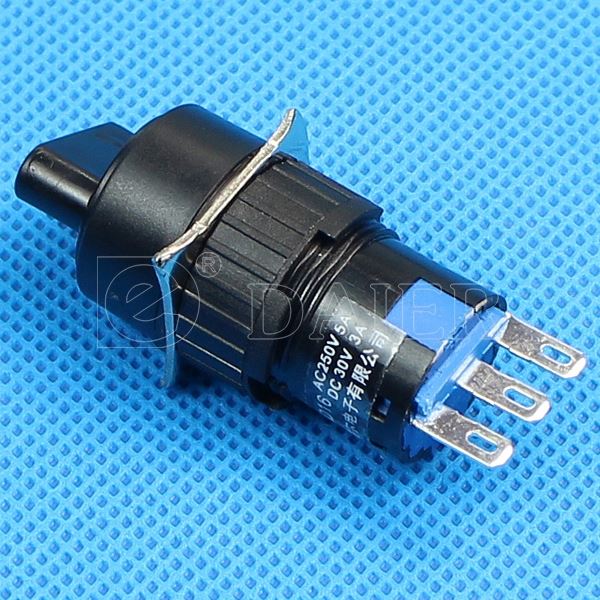

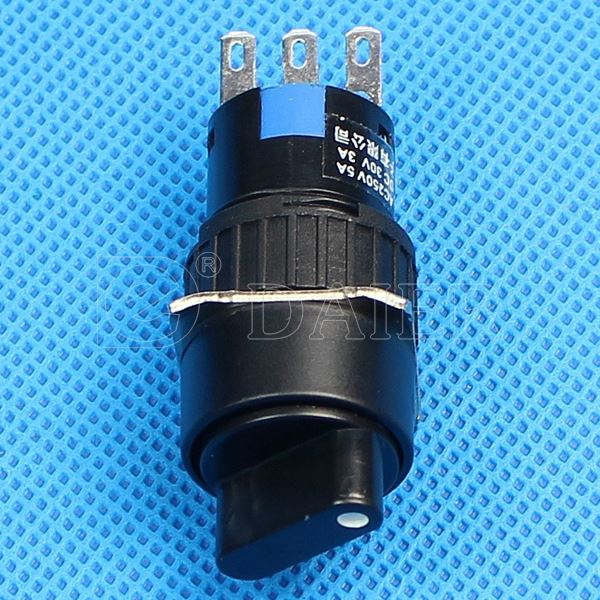

Product Show


A16-22ZX3

3 Position Double Pole Double Throw Push Select Switch

Specifications:
1. Rating: 3A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function:Latching Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
