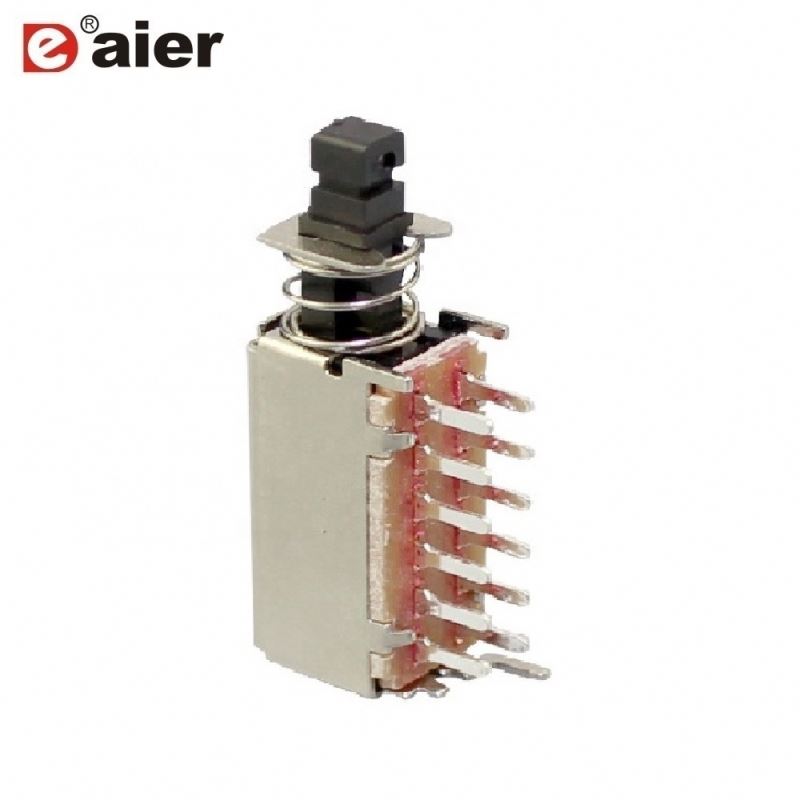

12 Pin 4PDT Push Button Switch For Fan

Click on the image to view the original image

Product：	views：212 Pin 4PDT Push Button Switch For Fan
Branch：	Daier
Type：	Push Button Switch
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: PS-42F09L/N

Protection Level:: IP40

Max. Current:: 0.5A

Max. Voltage:: 50VDC

Product type:: 12 Pin 4PDT Push Button Switch For Fan

Type:: Push Button Switch

Product name:: PS-42F91L/N

Rating:: 0.5A 50VDC

Function:: ON-ON; ON-(ON)

Button Color:: Black

Terminal:: 12 Pin, PCB

Certificate:: CE, Rohs

OEM&ODM:: YES

Packing:: 100pcs/bag

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 0.6 kg

Package Type:: 100pcs/bag of 12 Pin 4PDT Push Button Switch For Fan

Lead Time:

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	7	To be negotiated

Product Description

Model	PS-42F09L/N
Type	12 Pin 4PDT Push Button Switch For Fan
Rating	0.5A 50VDC
Function	ON-ON; ON-(ON)
Terminal	12Pin, PCB Terminal
Degree of Protection	IP40
Button Color Avaliable	Black
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩmin. 500VDC
Dielectric Strength	AC 550V 1 minute
Electrical Life	10,000 cycles min

Product Show

PS-42F09L/N

12 Pin 4PDT Push Button Switch For Fan

Specifications:
1. Rating: 0.5A 50VDC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength: 500V AC 1min

6. Operating Temperature:-25°C~

7. Function: Latching/Momentary Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
