Maintained Spring Return Push Button Switch For TV
Click on the image to view the original image
Product： views：2Maintained Spring Return Push Button Switch For TV
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PS-12E01L
Protection Level:
IP40
Max. Current:
0.5A
Max. Voltage:
50VDC
Product type:
Maintained Spring Return Push Button Switch For TV
Type:
Push Button Switch
Product name:
PS-12E01L
Rating:
0.5A 50VDC
Function:
ON-ON
Button Color:
Blue
Terminal:
3 Pin, PCB
Certificate:
CE, Rohs
OEM&ODM:
YES
Packing:
500pcs/bag

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X10 cm
Gross weight per batch:
1.0 kg
Package Type:
500pcs/bag of Maintained Spring Return Push Button Switch For TV
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)7To be negotiated
Product Description
Model
PS-12E01L
Type
Maintained Spring Return Push Button Switch For TV
Rating
0.5A 50VDC
Function
ON-ON
Terminal
3Pin, PCB Terminal
Degree of Protection
IP40
Button Color Avaliable
Blue
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩmin. 500VDC
Dielectric Strength
AC 250V  1 minute
Electrical Life
10,000 cycles min

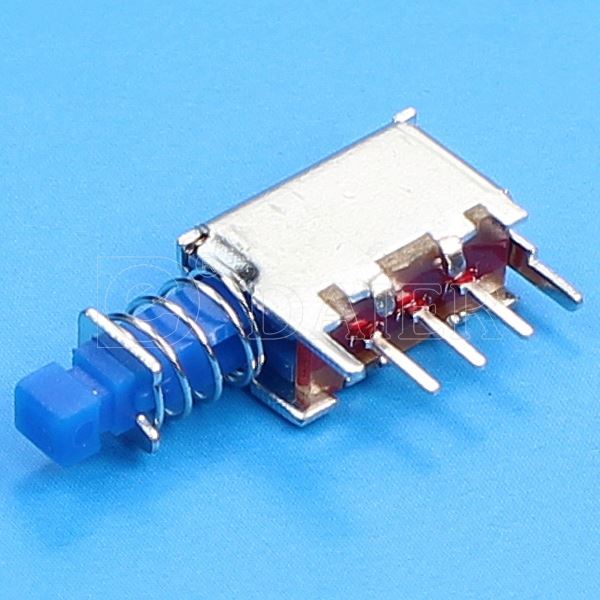

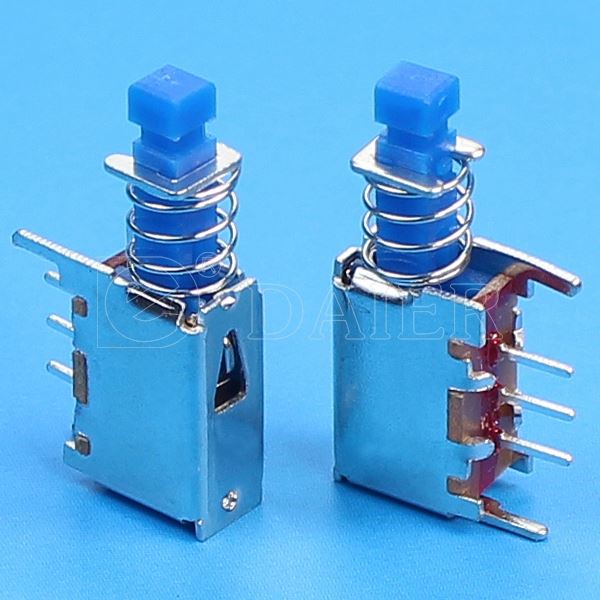

Product Show

PS-12E01L

Maintained Spring Return Push Button Switch For TV

Specifications:
1. Rating: 0.5A 50VDC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC250V 100MΩ min
5. Dielectric Strength: 1500V AC 1min

6. Operating Temperature:-25°C~

7. Function: Latching Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
