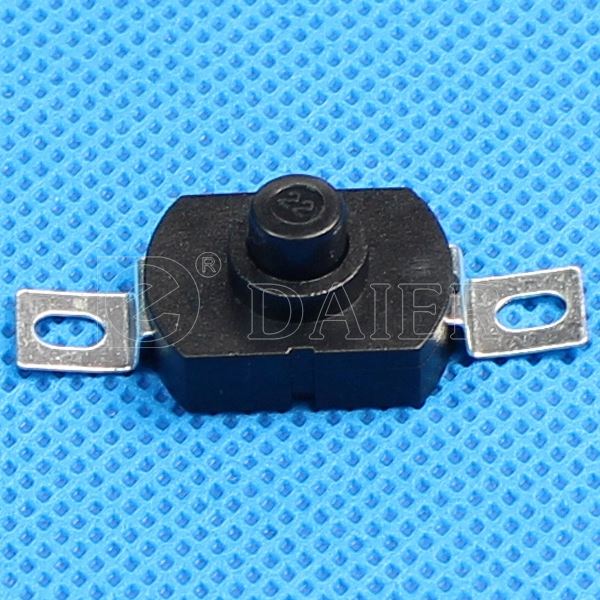

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-09
- Protection Level:
- IP40
- Max. Current:
- 1A
- Max. Voltage:
- 30VDC
- Product type:
- 2 Pin Surface Mount Push Button Switch
- Type:
- Push Button Switch
- Product name:
- PBS-09
- Rating:
- 1A 250V
- Function:
- Lathcing
- Switch Color:
- Black
- Terminal:
- 2 Pin, Sloder Terminal
- Certificate:
- CE, Rohs
- OEM&ODM:
- YES
- Packing:
- 500pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X5 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:

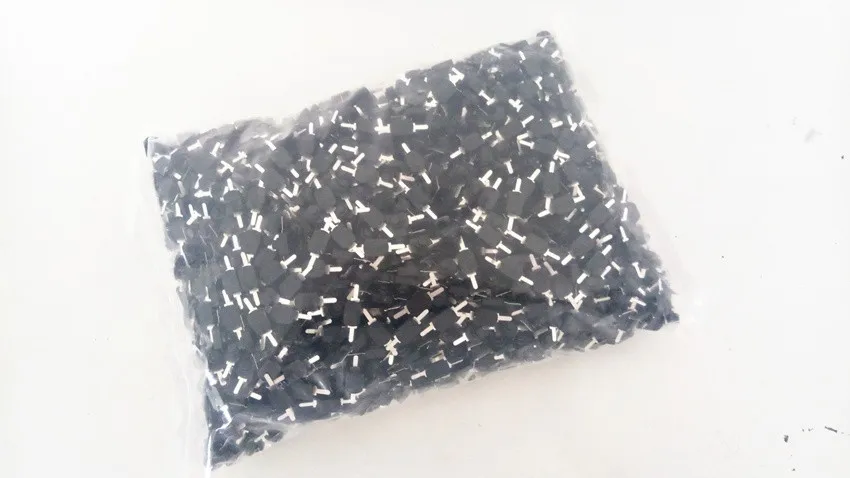

- 500pcs/bag of 2 Pin Surface Mount Push Button Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
Product Description

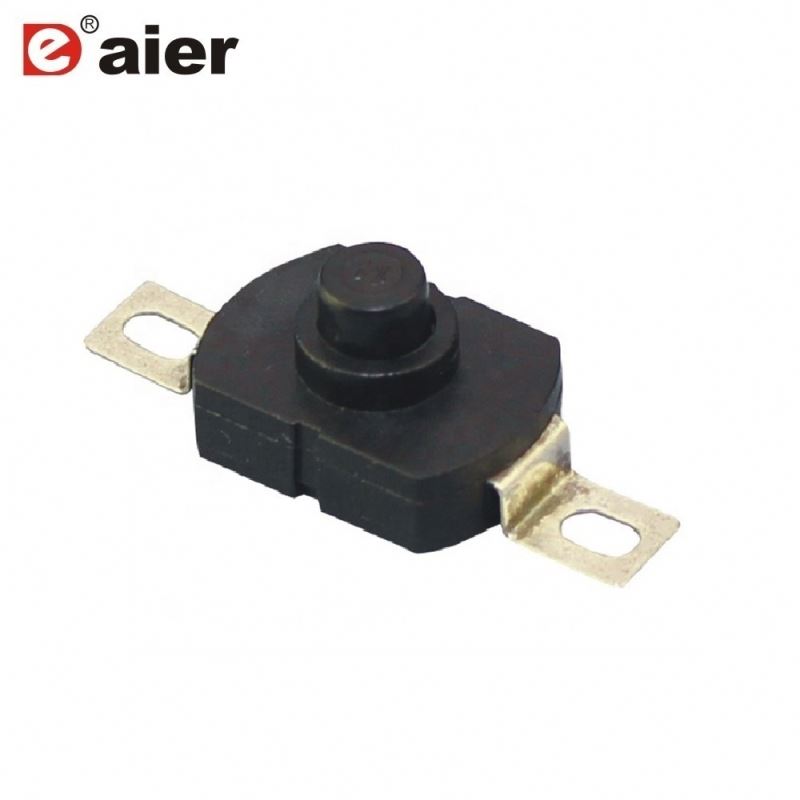

Product Show
PBS-09
2 Pin Surface Mount Push Button Switch
Specifications:
1. Rating: 1A 250VAC
2. Electrical Life: 10,000 Cycles
3.Contact Resistance: 100mΩ max
4. Insulation Resistance:DC250V 100MΩ min
5. Dielectric Strength:500V AC 1min
6. Operating Temperature:-25°C~+85°C
7. Function:Latching Push Button Switch
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
