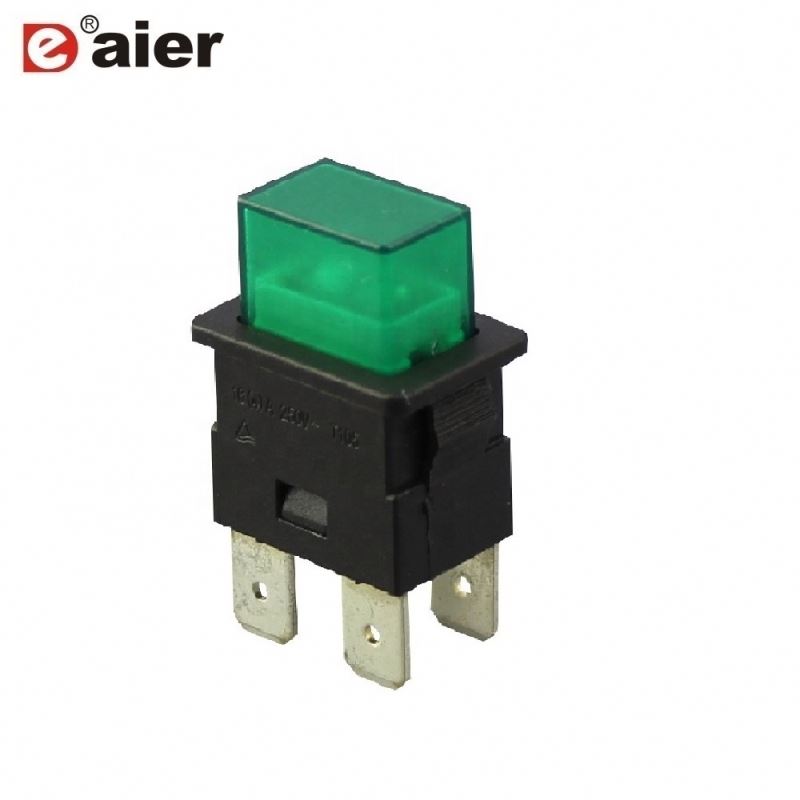

PS23-16N ON OFF 16A Led Light Illuminated Pushbutton Switch

Click on the image to view the original image

Product：	views：2PS23-16N ON OFF 16A Led Light Illuminated Pushbutton Switch
Branch：	Daier
Type：	Push Button Switch
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: PS23-16N

Protection Level:: IP40

Max. Current:: 16A

Max. Voltage:: 250V

Product type:: PS23-16N ON OFF 16A Led Light Illuminated Pushbutton Switch

Type:: Push Button Switch

Product name:: PS23-16N

Rating:: 16A 250V

Function:: Latching

Panel Size:: 12.9x19.9mm

Button Color:: Red/Green

Terminal:: Solder Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X5 cm

Gross weight per batch:: 0.6 kg

Package Type:: 100pcs/bag of PS23-16N ON OFF 16A Led Light Illuminated Pushbutton Switch

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	7	To be negotiated

Product Description

Model	PS23-16N
Type	PS23-16N ON OFF 16A Led Light Illuminated Pushbutton Switch
Rating	16A 250V
Button Size	12.9x19.9mm
Function	ON-OFF
Light	With Light
Terminal	4 Pin, Solder Terminal
Degree of Protection	IP40
Button Color Avaliable	Red/Green
Housing Color Available	Black
Operating Temperature	-25°C ~+85°C
Contact Resistance	35mΩ max.
Insulation Resistance	100MΩmin. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

PS23-16N

Specifications:
1. Rating: 16A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 35mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Latching Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
