Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- PBS-18B
- Protection Level:
- IP40
- Max. Current:
- 25mA
- Max. Voltage:
- 250VAC
- Product type:
- Square Arcade Push ON Momentary Push Button Switch
- Type:
- Push Button Switch
- Product name:
- PBS-18B
- Rating:
- 25mA 250V
- Function:
- Momentary
- Panel Size:
- 12.4x12.4mm
- Button Color:
- Red/ /Black
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs
- OEM&ODM:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X5 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:

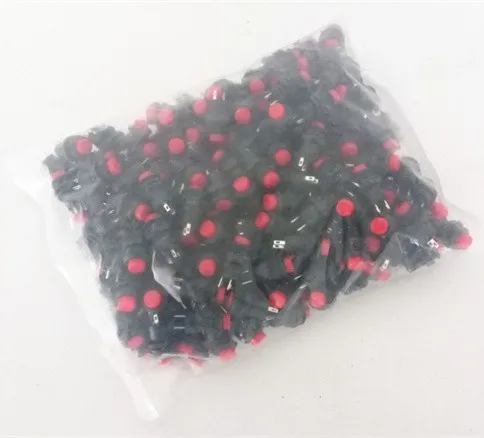

- 200pcs/bag ofSquare Arcade Push ON Momentary Push Button Switch
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 200000 >200000 Est. Time(days) 7 To be negotiated
Product Description

Model | DS-429 |
Type | Square Arcade Push ON Momentary Push Button Switch |
Rating | 25mA 250V |
Button Size | 12.4x12.4mm |
Function | OFF-(ON) Momentary |
Light | Without Light |
Terminal | 2 Pin, Solder Terminal |
Degree of Protection | IP40 |
Button Color Avaliable | Red/ Black |
Operating Temperature | -25°C ~+85°C |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100MΩmin. 500V DC |
Dielectric Strength | AC 1500V 1 minute |
Electrical Life | 10,000 cycles min |
Product Show


DS-429
Square Arcade Push ON Momentary Push Button Switch
Specifications:
1. Rating: 25mA 250VAC
2. Electrical Life: 10,000 Cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min
6. Operating Temperature:-25°C~+85°C
7. Function: Momentary Push Button Switch
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers


Application

Our Factory

Our Certifications

Company Information





Our Advantage

Square Arcade Push ON Momentary Push Button Switch
