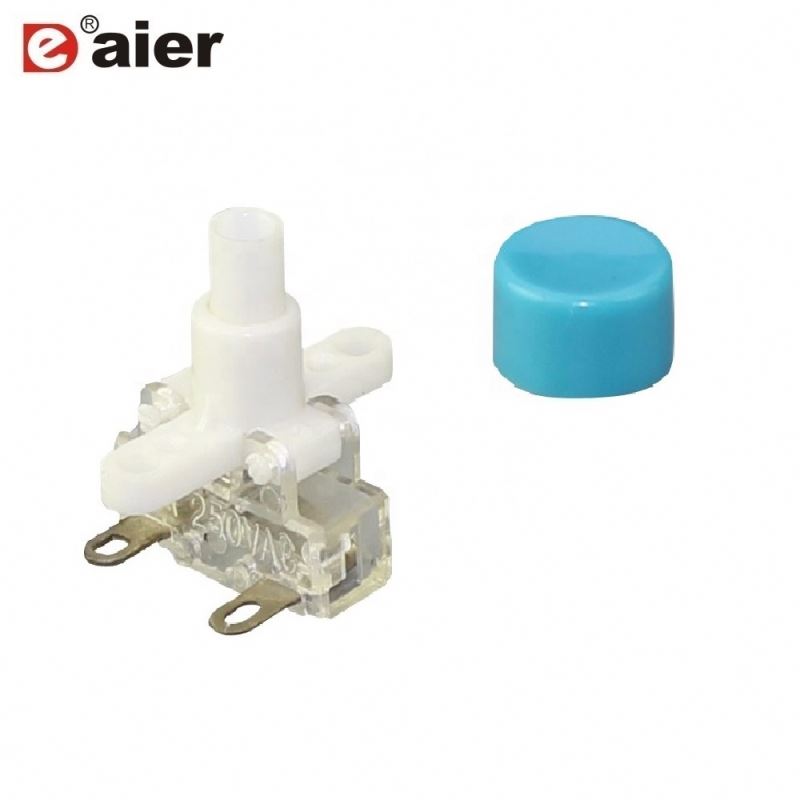

Transparent Latching Type Push Button Switch With Plastic Cover

Click on the image to view the original image

Product：	views：2Transparent Latching Type Push Button Switch With Plastic Cover
Branch：	Daier
Type：	Push Button Switch
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:10

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: PBS-19

Protection Level:: IP40

Max. Current:: 6A

Max. Voltage:: 250V

Product type:: Transparent Latching Type Push Button Switch With Plastic Cover

Type:: Push Button Switch

Product name:: PBS-19

Rating:: 6A 250V

Function:: Latching

Switch Color:: Transparent

Terminal:: Solder Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packing:: 100pcs/bag

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X5 cm

Gross weight per batch:: 0.6 kg

Package Type:: 100pcs/bag of Transparent Latching Type Push Button Switch With Plastic Cover

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	7	To be negotiated

Product Description

Model	PBS-19
Type	Transparent Latching Type Push Button Switch With Plastic Cover
Rating	6A 250V
Function	ON-OFF
Light	Without Light
Terminal	2 Pin, Solder Terminal
Degree of Protection	IP40
Switch Color Avaliable	Transparent
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩmin. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

PBS-19

Specifications:
1. Rating: 6A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Latching Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
