Home > Products > 10mm Colorful Button Latching Push Button Switch

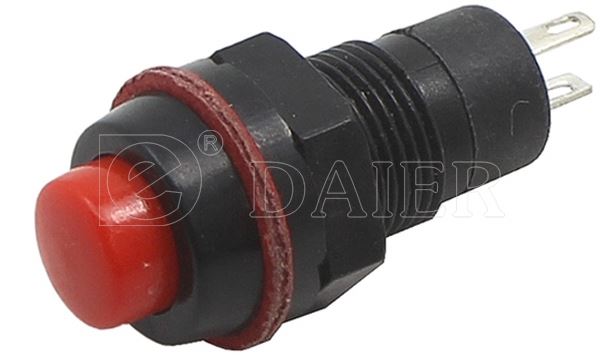

10mm Colorful Button Latching Push Button Switch
Click on the image to view the original image
Product： views：210mm Colorful Button Latching Push Button Switch
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
DS-211
Protection Level:
IP40
Max. Current:
1A
Max. Voltage:
250V
Product type:
10mm Colorful Button Latching Push Button Switch
Type:
Push Button Switch
Product name:
DS-211
Rating:
1A 250V
Function:
ON-OFF latching
Panel Size:
10mm
Button Color:
Red/ Green/White/Blue/Yellow
Terminal:
Solder Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X5 cm
Gross weight per batch:
0.5 kg
Package Type:
100pcs/bag of 10mm Colorful Button Latching Push Button Switch
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Model
DS-211
Type
10mm Latching Push Button Switch
Rating
1A  250VAC
Function
ON-OFF Latching
Button Size
10mm
Light
Without Light
Terminal
2 Pin, Solder Terminal
Degree of Protection
IP40
Button Color Avaliable
Red/ Green/White/Blue/Yellow
Housing Color Available
White/Black
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩmin. 500V DC
Dielectric Strength
AC 1500V  1 minute
Electrical Life
10,000 cycles min

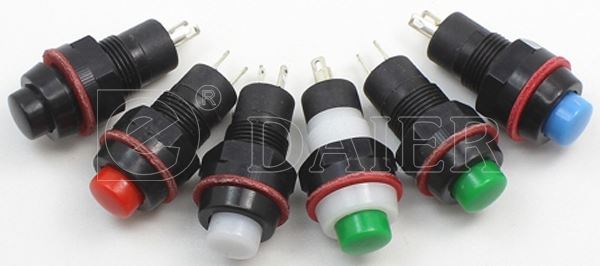

Product Show

DS-211

10mm Colorful Button Latching Push Button Switch

Specifications:
1. Rating: 1A 250VDC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Latching Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
