Home > Products > Electronic Foot Push Button Switch For Lamp

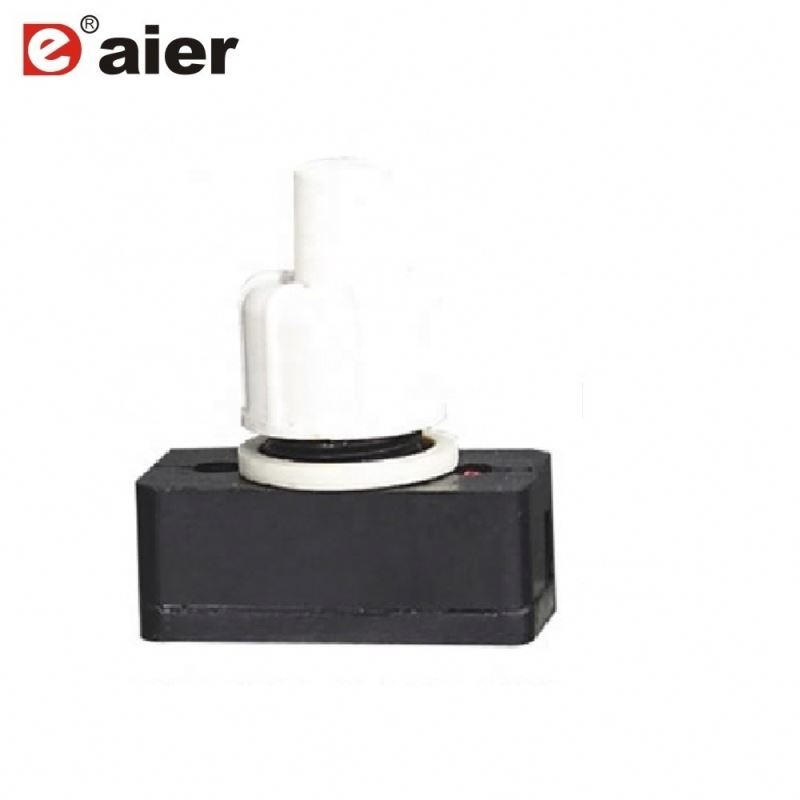

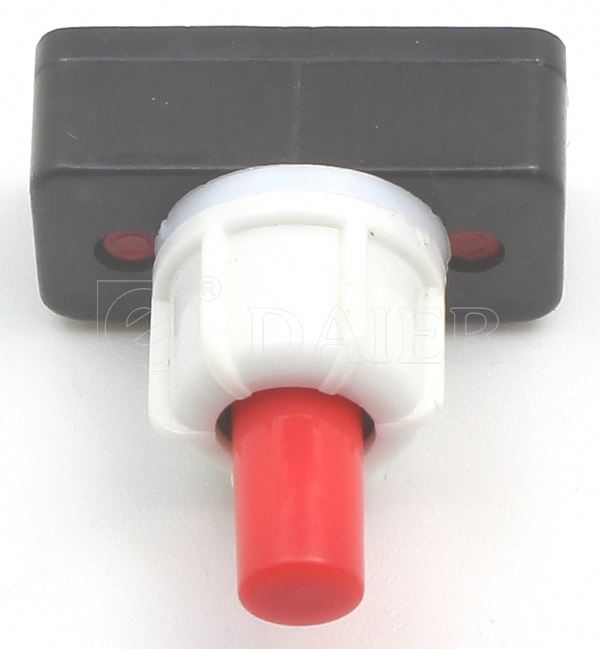

Electronic Foot Push Button Switch For Lamp
Click on the image to view the original image
Product： views：5Electronic Foot Push Button Switch For Lamp
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
PBS-17A-2
Protection Level:
IP40
Max. Current:
2A
Max. Voltage:
250V
Product type:
MElectronic Foot Push Button Switch For Lamp
Type:
Push Button Switch
Product name:
PBS-17A-2
Rating:
2A 250V
Function:
Latching
Mouning Size:
10mm
Button Color:
White/Red
Terminal:
Wire Install
Certificate:
CE, Rohs
OEM&ODM:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X5 cm
Gross weight per batch:
0.6 kg
Package Type:
100pcs/bag of Electronic Foot Push Button Switch For Lamp
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Model
PBS-17A-2
Type
Electronic Foot Push Button Switch For Lamp
Rating
2A 250V
Mounting Size
10mm
Function
ON-OFF
Terminal
Wire Install
Degree of Protection
IP40
Button Color Avaliable
White/Red
Operating Temperature
-25°C ~+85°C
Contact Resistance
20mΩ max.
Insulation Resistance
100MΩmin. 500V DC
Dielectric Strength
AC 1000V  1 minute
Electrical Life
50,000 cycles min
Product Show

PBS-17A-2

Electronic Foot Push Button Switch For Lamp

Specifications:
1. Rating: 2A 250VAC
2. Electrical Life: 50,000 Cycles

3.Contact Resistance: 20mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1000V AC 1min

6. Operating Temperature:-25°C~

7. Function: Momentary Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
