Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- DS-500
- Protection Level:
- IP40, IP40
- Max. Current:
- 1A
- Max. Voltage:
- 250VAC
- Item:

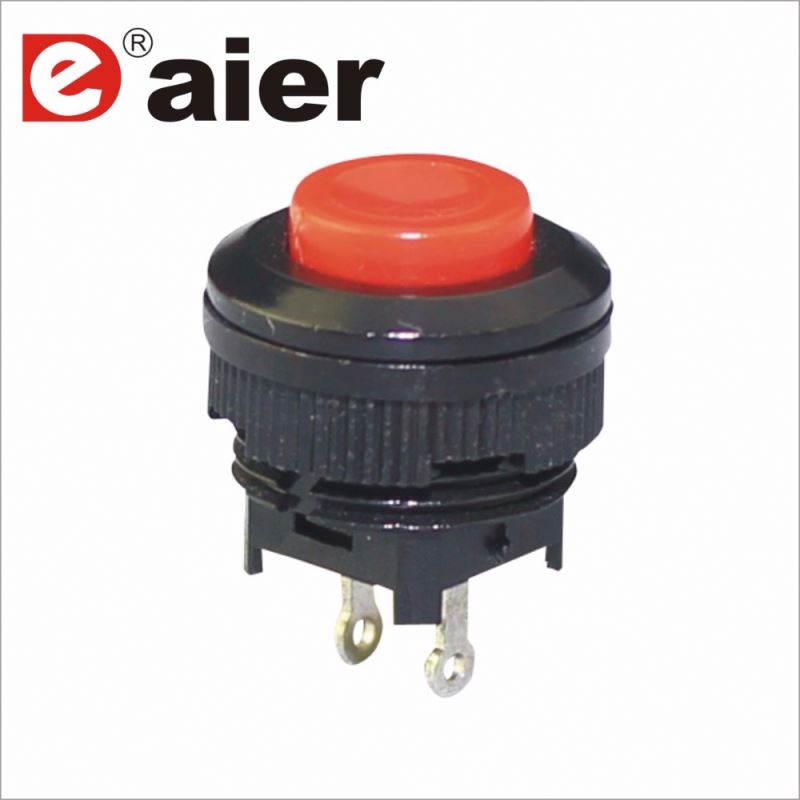

- Push Button Switch 14mm
- Material:
- Plastic
- Function:
- SPST Momentary
- Panel Size:
- 14mm
- Button Color:

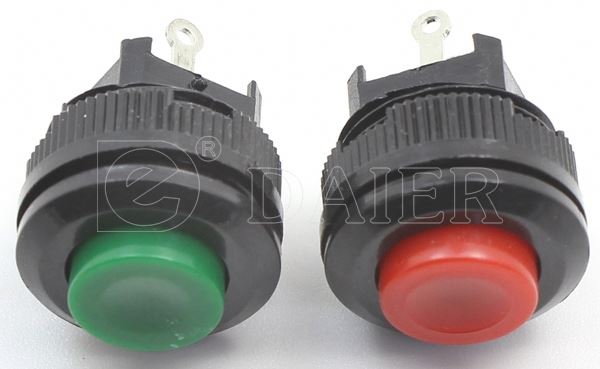

- Red, Green, Yellow, Blue, Black, White
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 100pcs/bag
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X15X6 cm
- Gross weight per batch:
- 0.6 kg
- Package Type:
- DS-500 Push Button Switch 14mm is 100pcs/bag.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
DS-500
Specifications:
1. Rating: 1A 250VAC
2. Function: SPST Momentary
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:100MΩ min
5. Dielectric Strength:1500V AC for 1 min
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: ≥10,000 Cycles
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
