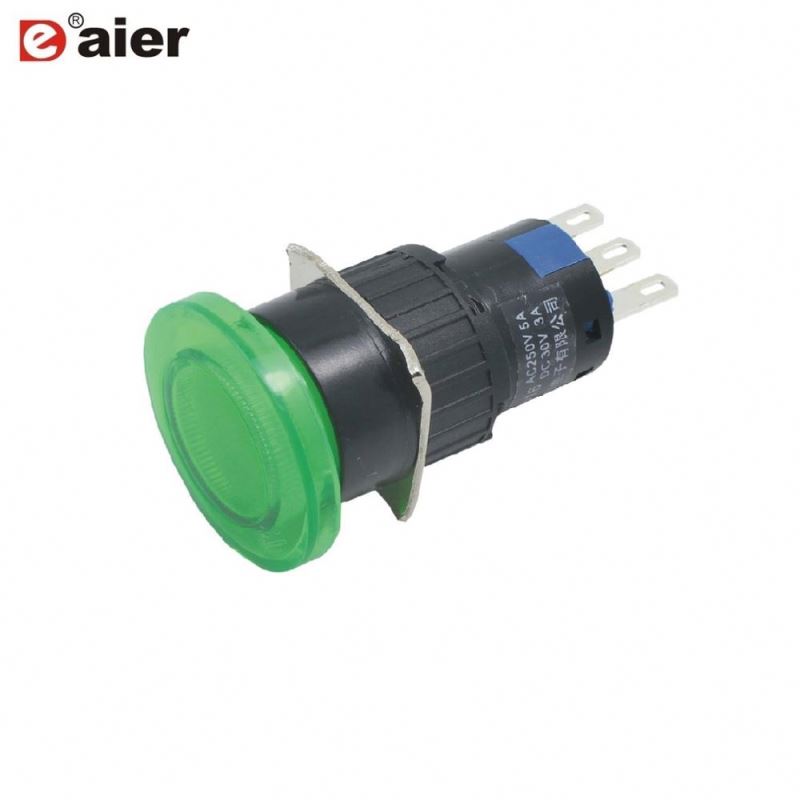

220V Emergency Illuminated Mushroom Push Button Switch
Click on the image to view the original image
Product： views：3220V Emergency Illuminated Mushroom Push Button Switch
Branch： Daier
Type： Push Button Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
A16-11SM-N
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250V
Product type:
220V Emergency Illuminated Mushroom Push Button Switch
Type:
Push Button Switch
Product name:
A16-11SM-N
Rating:
3A 250V
Function:
ON-(ON)
Panel Size:
16mm
Light Color:
Red/ Green
Terminal:
Solder Terminal
Certificate:
CE, Rohs
OEM&ODM:
YES

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X10X5 cm
Gross weight per batch:
0.5 kg
Package Type:
30pcs/box of 220V Emergency Illuminated Mushroom Push Button Switch
Lead Time:
Quantity(Piece)1 - 30000>30000
Est. Time(days)7To be negotiated
Product Description
Model
A16-11SM-N
Type
220V Emergency Illuminated Mushroom Push Button Switch
Rating
3A 250V
Button Size
16mm
Function
ON-(ON)
Light
With Light
Terminal
5 Pin,  Solder Terminal
Degree of Protection
IP40
Light Color Avaliable
Red/ Green
Operating Temperature
-25°C ~+85°C
Contact Resistance
50mΩ max.
Insulation Resistance
100MΩ min. 500V DC
Dielectric Strength
AC 1500V1 minute
Electrical Life
10,000 cycles min

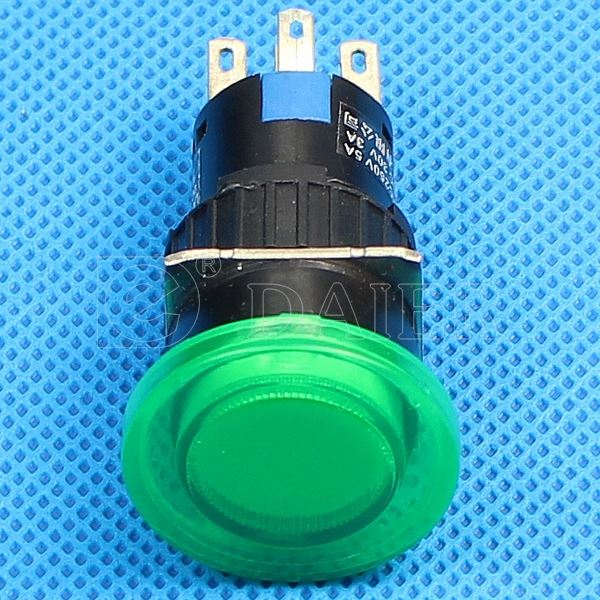

Product Show

A16-11SM-N

220V Emergency Illuminated Mushroom Push Button Switch

Specifications:
1. Rating: 3A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function:Momentary Push Button Switch

8. Operating Force: 5N Max


Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
