Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- L12H-10NM-AB
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item:

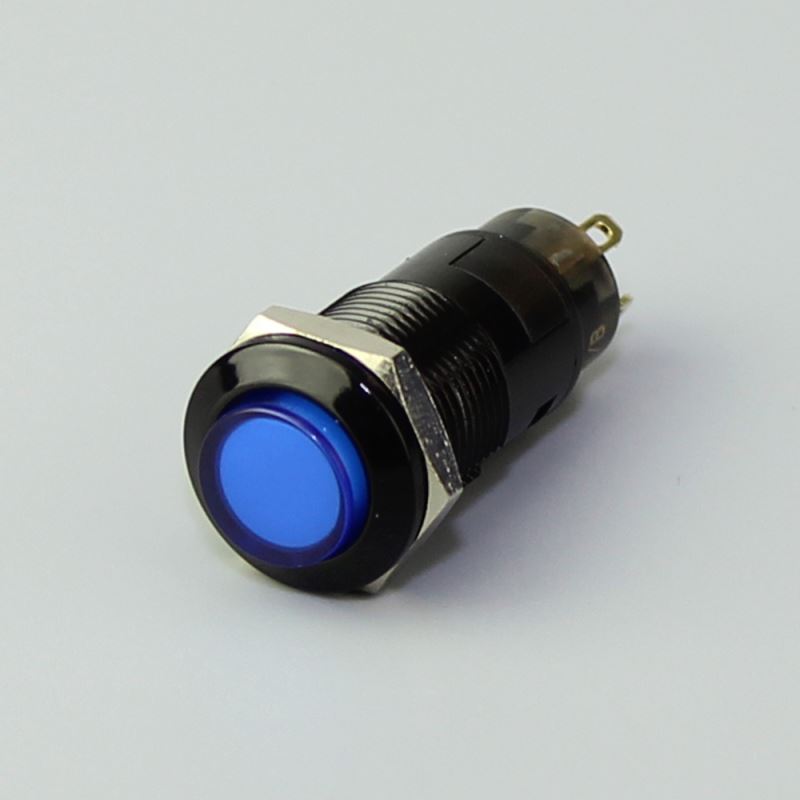

- 12mm High Blue Button Black Body Momentary Plastic Pushbutton Switch
- Function:
- Momentary
- Panel Size:
- 12mm
- Button Shape:
- High Button
- IP Class:
- IP67
- Terminal Type:
- Soldering Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 50pcs/box
- Lamp color:
- Red Green Yellow Blue White Orange
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.2 kg
- Package Type:
- L12H-10NM-AB12mm High Blue Button Black Body IP67 Momentary Plastic Pushbutton Switch is 50pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 7 To be negotiated
L12H-10NM-AB
Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: Momentary
8. IP Class: IP67 protection
9. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
