- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- A16-20SR-B
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item:

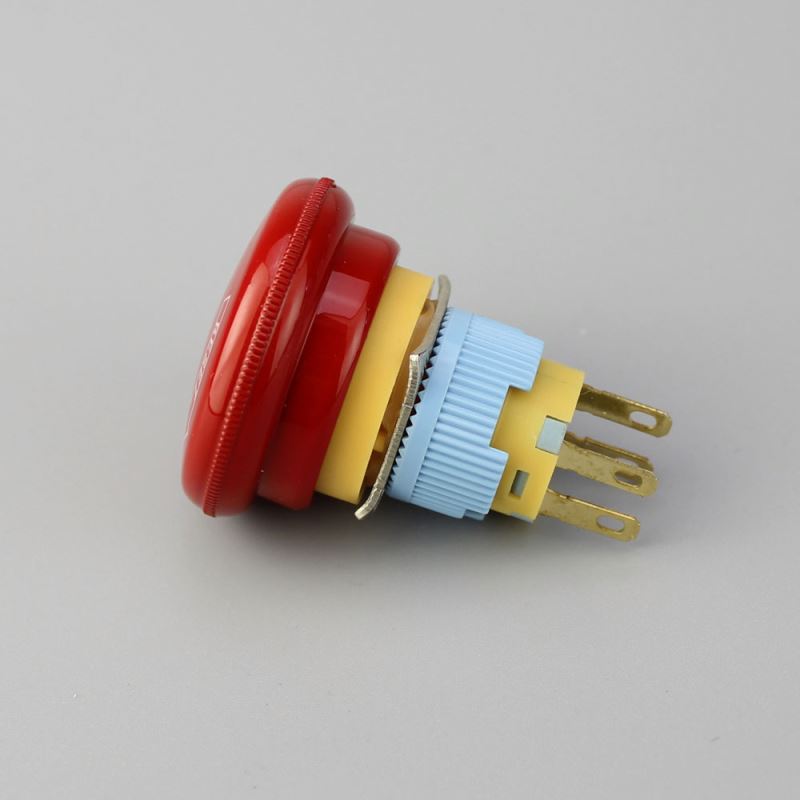

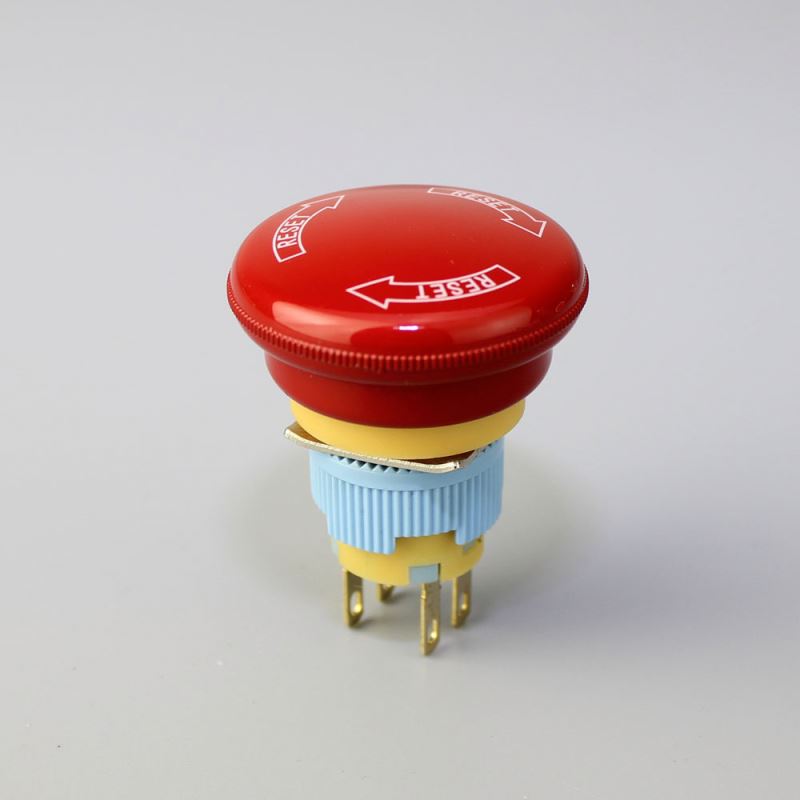

- 16mm Mushroom IP65 Emergency Pull Switch
- Material:
- Plastic
- Electric life:
- 50,000 cycles
- Contact Resistance:
- 50 mΩ max
- Dielectric Strength:
- 2000VAC
- The Front Shape:
- Ball
- Operation Type:
- Push-Lock Turn-Reset
- Terminal:
- Solder Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- A16-20SR-B 16mm Mushroom IP65 Emergency Pull Switch is 20pcs/bag
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 7 To be negotiated
A16-20SR-B
Specifications:
1. Rating: 5A 250VAC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: 1NO 1NC/2NO 2NC
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
