Home > Products > KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
Click on the image to view the original image
Product： views：2KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
KN3B-102
Max. Current:
15A
Max. Voltage:
250VAC
Mechanical Life:
10000Cycles
Item:
KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
Model:
KN3B-102
Circuitry trait:
ON-ON
COLOR:
Black
Terminal type:
Screw Terminals
Rating Current:
15A
Rating Voltage:
250V
Operating Temperature:
-25℃~+85℃
Certificate:
CE,TUV
Standard:
IEC Standard

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
30X10X10 cm
Gross weight per batch:
1.2 kg
Package Type:
25pcs/box,500pcs/carton of KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
Lead Time:
Quantity(Piece)1 - 25000>25000
Est. Time(days)7To be negotiated
Product Description
Item
KN3B-102 15A 12MM SPDT ON ON PCB 3 Pin Single Pole Toggle Switch
Switch Function
ON ON  SPDT   3 pin single pole toggle switch
Rating
15A 125VAC; 10A 250VAC
Contact Resistance
< 50MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES

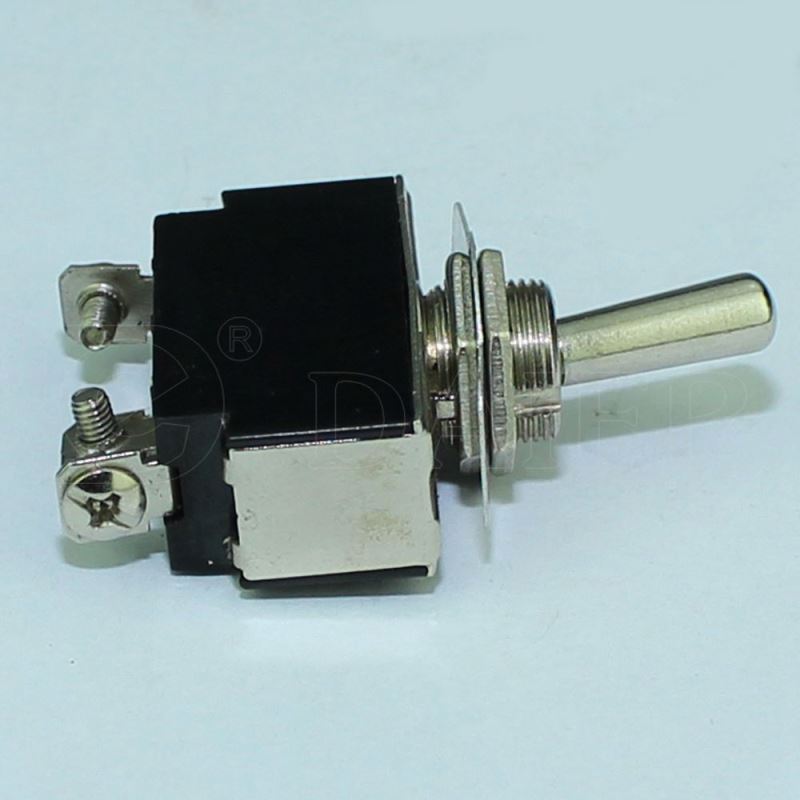

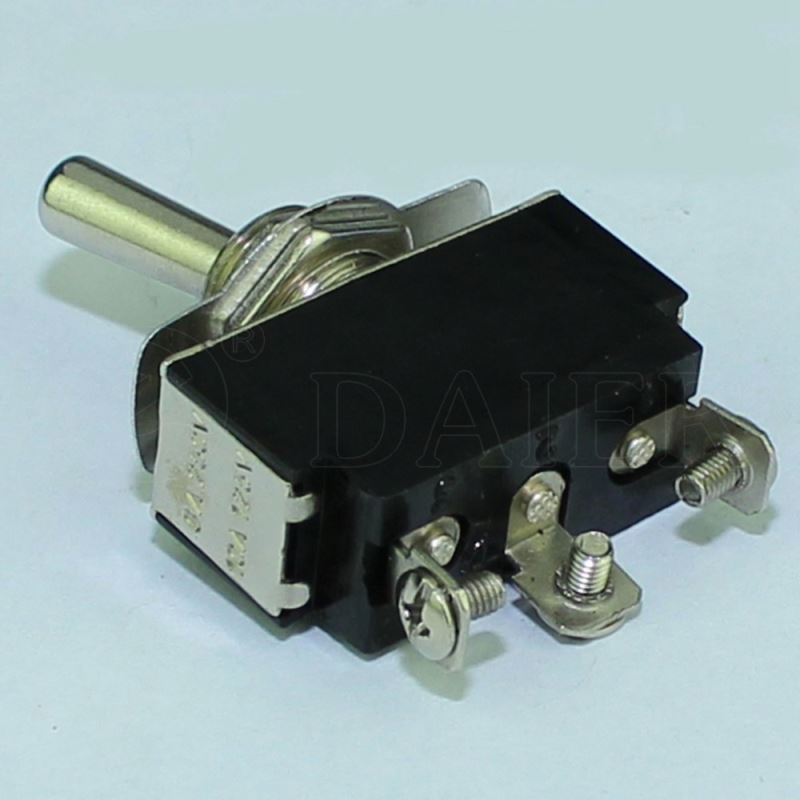

Product Show
