Home > Products > KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V

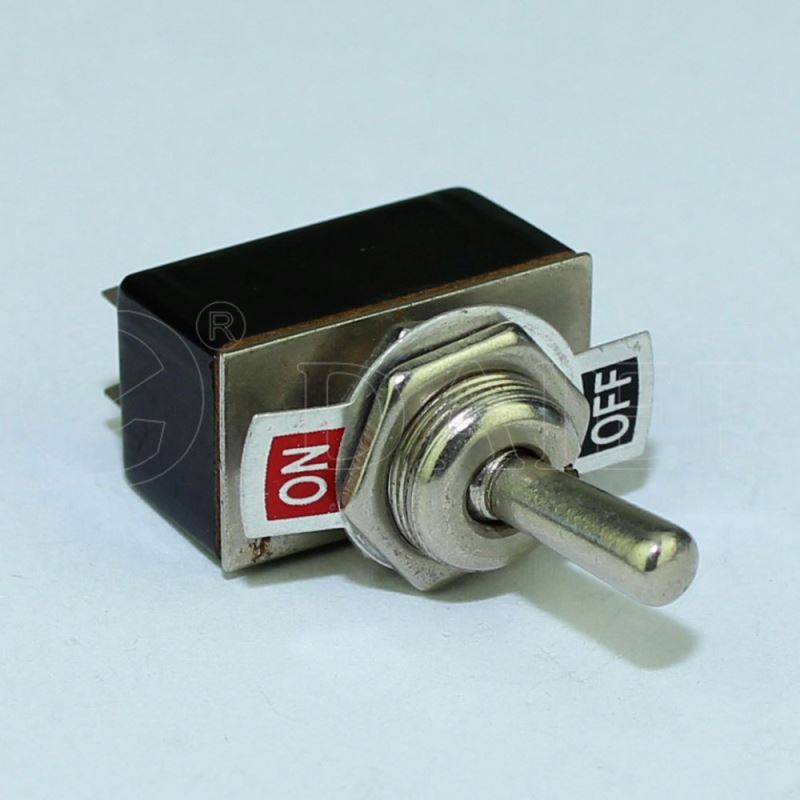

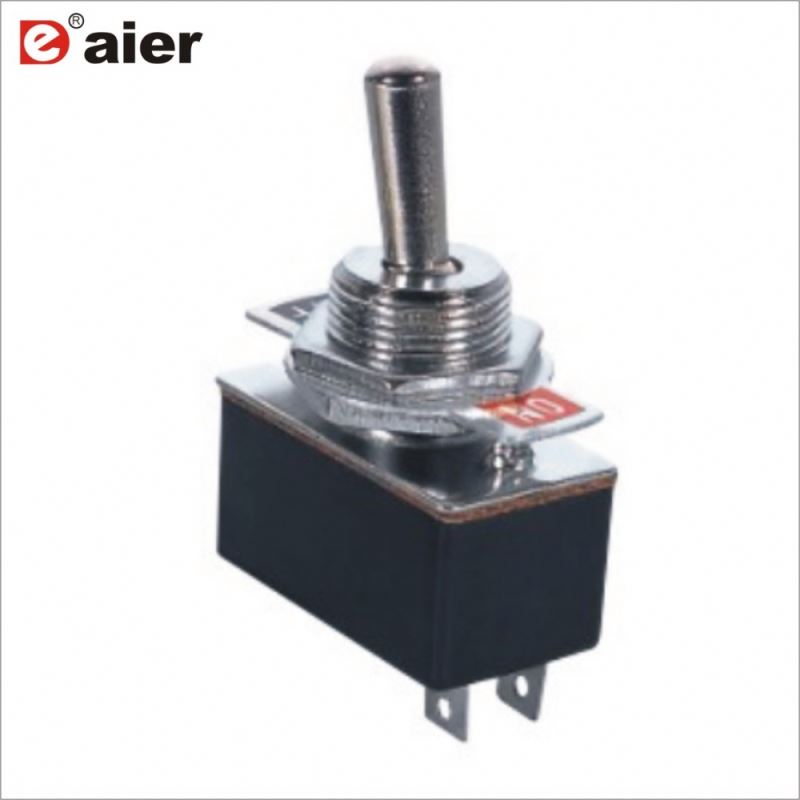

KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V
Click on the image to view the original image
Product： views：2KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
KN3-1
Max. Current:
4A
Max. Voltage:
250VAC
Mechanical Life:
10000Cycles
Item:
KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V
Model:
KN3-1
Circuitry trait:
ON-OFF
COLOR:
Black
Terminal type:
PC Terminals
Rating Current:
4A
Rating Voltage:
125V
Operating Temperature:
-25℃~+85℃
Certificate:
CE,TUV
Standard:
IEC Standard

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
30X10X10 cm
Gross weight per batch:
1.04 kg
Package Type:
50pcs/box,500pcs/carton of KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V
Lead Time:
Quantity(Piece)1 - 50000>50000
Est. Time(days)7To be negotiated
Product Description
Item
KN3-1 4A 12MM Single Pole ON OFF 2 Position Toggle Switch 2 Pin 250V
Switch Function
ON OFF SPST  2a 250vac 2 pin toggle switch
Rating
4A 125VAC; 2A 250VAC
Contact Resistance
< 50MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES
Product Show
