Home > Products > 30A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way

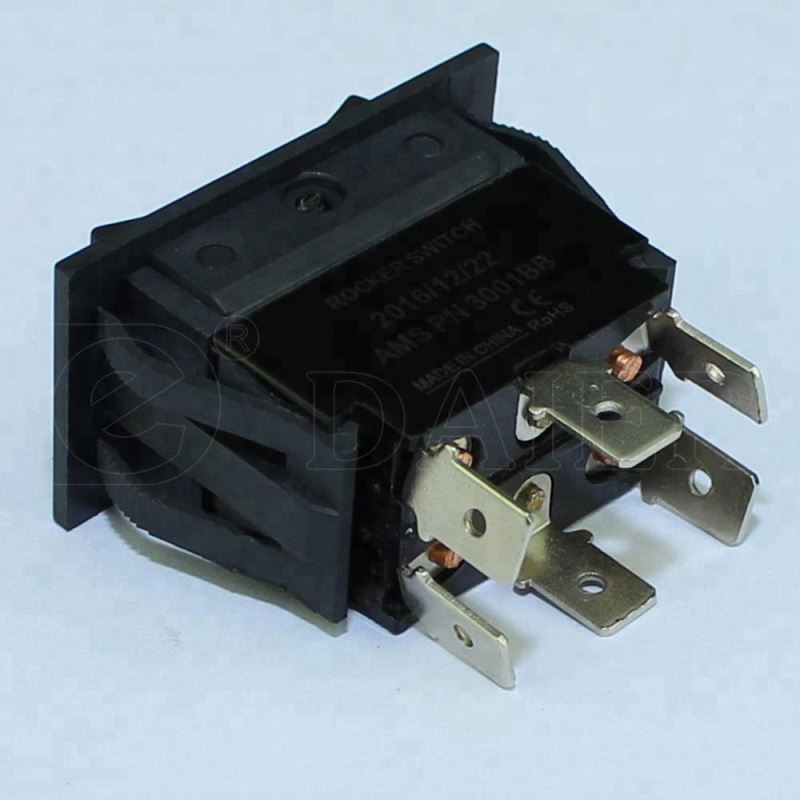

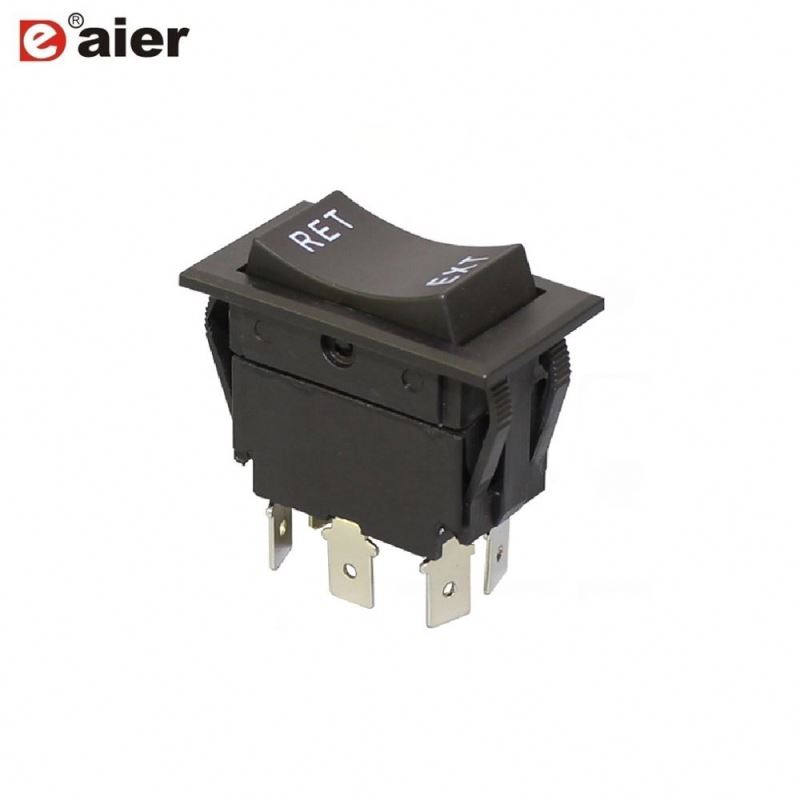

30A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way
Click on the image to view the original image
Product： views：230A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way
Branch： Daier
Type： A/C Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Type:
A/C Switch
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KCD2-7-223
Car Make:
Car
Warranty:
12 Months
Item:
30A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way
Model:
KCD2-7-223
Rating Current:
30A
Rating Voltage:
12VDC
Switch Function:
DPDT(ON)-OFF-(ON)
Housing Color:
Black
Size:
About 21*37.4 mm
Terminal type:
PC Terminals
Free Sample:
Available
Operating Temperature:
-25℃~+85℃

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
50X30X25 cm
Gross weight per batch:
14.0 kg
Package Type:
500pcs/box,1000pcs/carton of 30A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way
Lead Time:
Quantity(Piece)1 - 250000>250000
Est. Time(days)10To be negotiated
Product Description
Item
30A 12VDC DPDT 6 Pin ON OFF ON Momentary Automotive Car Switch 3 Way
Switch Function
DPDT    (ON)-OFF-(ON)   automotive car switch 3 way
Rating
30A 12VDC
Contact Resistance
< 50MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 Cycles
Product Show
