Home > Products > IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire

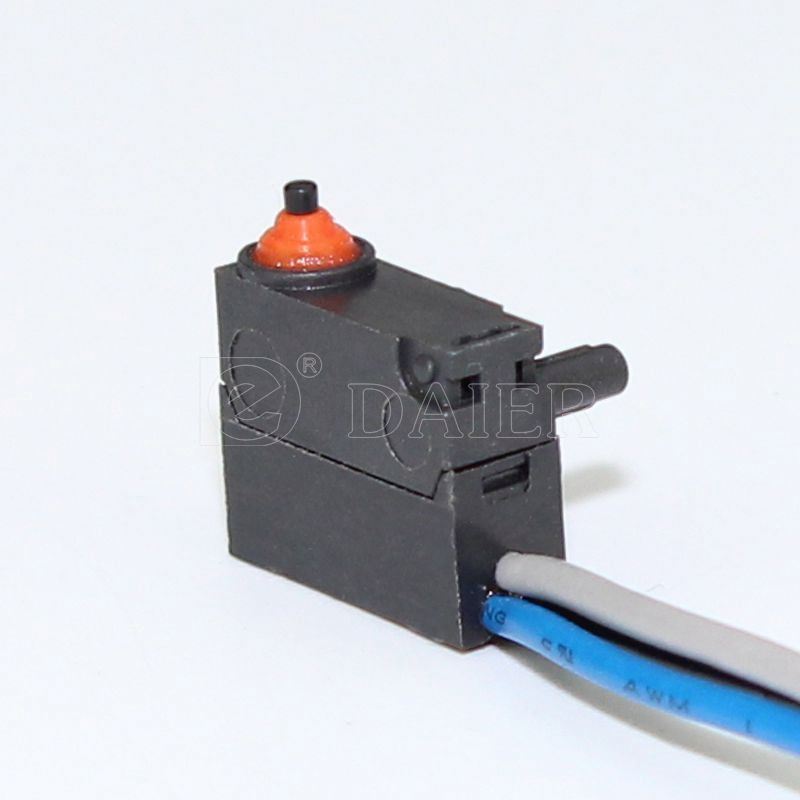

IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire
Click on the image to view the original image
Product： views：3IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
G303-F00-A3
Max. Current:
3A
Max. Voltage:
250VAC
Operating Temperature:
85℃, -25℃~+75℃
Protection Level:
IP67
Item:
IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire
Current:
0.1 / 3 A
Voltage:
250VAC/12VDC
Material:
Plastic
Switch Function:
SPST
Housing Color:
Black
Wire Length:
200 MM
Free Sample:
Available
Electrical Life:
≥10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
26X18X5 cm
Gross weight per batch:
1.0 kg
Package Type:
100pcs/box,5000pcs/carton of IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Item
IP67 3A 12VDC SPST Dustproof Waterproof Micro Switch T85 5e4 With Wire
Rating
0.1A 250VAC / 3A 12VDC
Circuit
SPST
Housing Color
Black
Contact Resistance
≤30mΩ
Insulation Resistance
≥100mΩ (500VDC)
Dielectric strength
1500VAC 1 minute
Ambient Temperature Used
〈85% RH
Electrical life
>10000 Cycles  waterproof micro switch t85 5e4

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.


The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50gf to 400gf.

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
