Home > Products > 3 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever

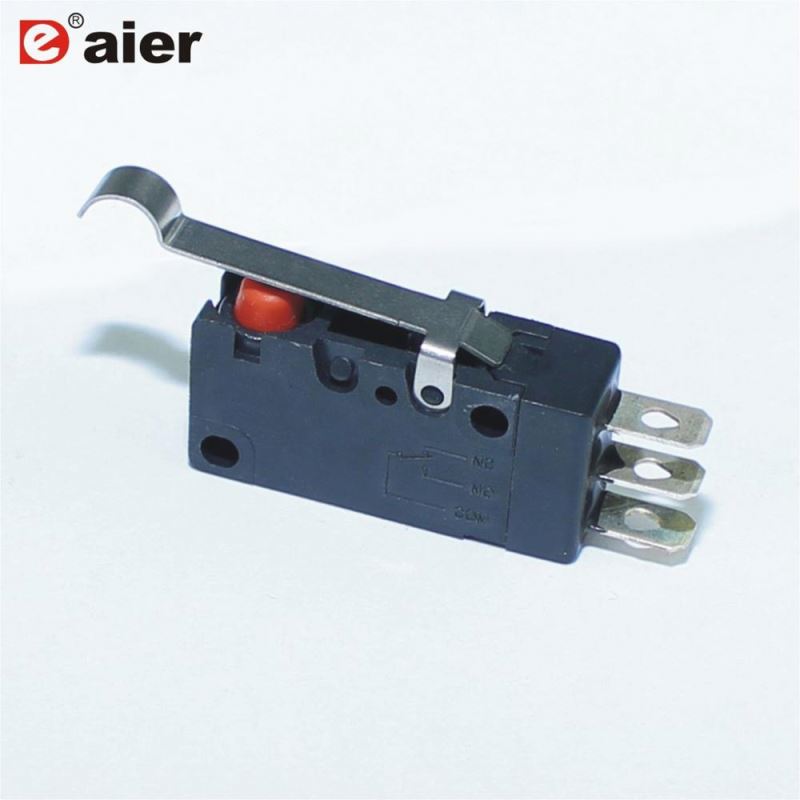

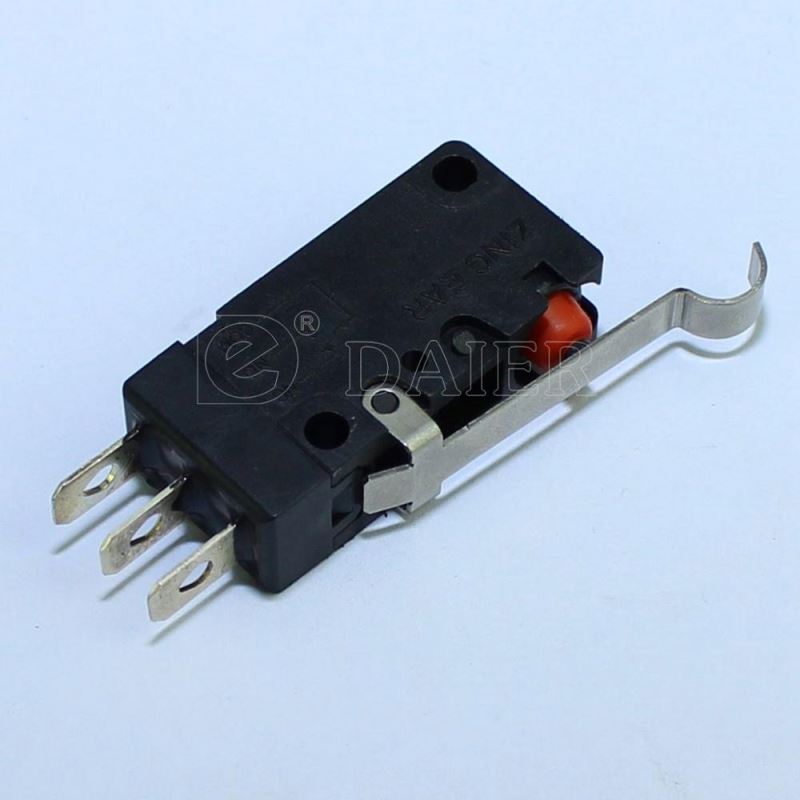

3 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever
Click on the image to view the original image
Product： views：23 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:11
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
WS2
Max. Current:
10A
Max. Voltage:
250VAC
Operating Temperature:
T85, -25℃~+75℃
Protection Level:
IP67
Item:
3 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever
Rating:
10A 250VAC
Housing Color:
Black
Lever:
Short Lever/Long Lever/Short Roller Lever/No Lever
Terminal Option:
Solder Terminal
Operating Force:
2N
Switch Function:
SPDT
Certification:
TUV
Electrical Life:
≥10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
31X17X2 cm
Gross weight per batch:
2.0 kg
Package Type:
100pcs/box,5000pcs/carton of 3 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Item
3 Pin SPDT Micro Switch 10A 250V 5e4 Waterproof With Arc Lever
Rating
10A 250VAC
Circuit
SPDT   micro switch 10a 250v 5e4 waterproof
Housing Color
Black
Actuator Forms
0:No Lever
A1/1:Short Lever
A2/2:Long Lever
A3/3:Middle Lever
A4/4:Short Roller
A5/5:Long Roller
A6/6:Arc Lever
Operating Force
050:0.5N
100:1N
150:1.5N
200:2N
300:3N
Note:If it is not standard operating force,indicate with the upper limit.
Electrical life
>10000 Cycles

WS2 Series Micro Switch:

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.


Mounting options include vertical, right angle, PCB and snap-in mounting.


They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
