Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KW1-103-Z2B-D
- Max. Current:
- 16A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+85℃, -25℃~+85℃
- Protection Level:
- IP40
- Item:
- 16A 250VAC DPDT Double Micro Switches With Solder Terminal
- Rating:
- 16A 250VAC
- Housing Color:
- Green
- Terminal:
- Solder/Quick-connect Terminal
- Lever:
- Short Lever
- Operating Force:
- 1~3N
- Switch Function:
- DPDT
- Certification:
- TUV
- Electrical Life:
- ≥10000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 100pcs/box,1000pcs/carton of 16A 250VAC DPDT Double Micro Switches With Solder Terminal
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Description

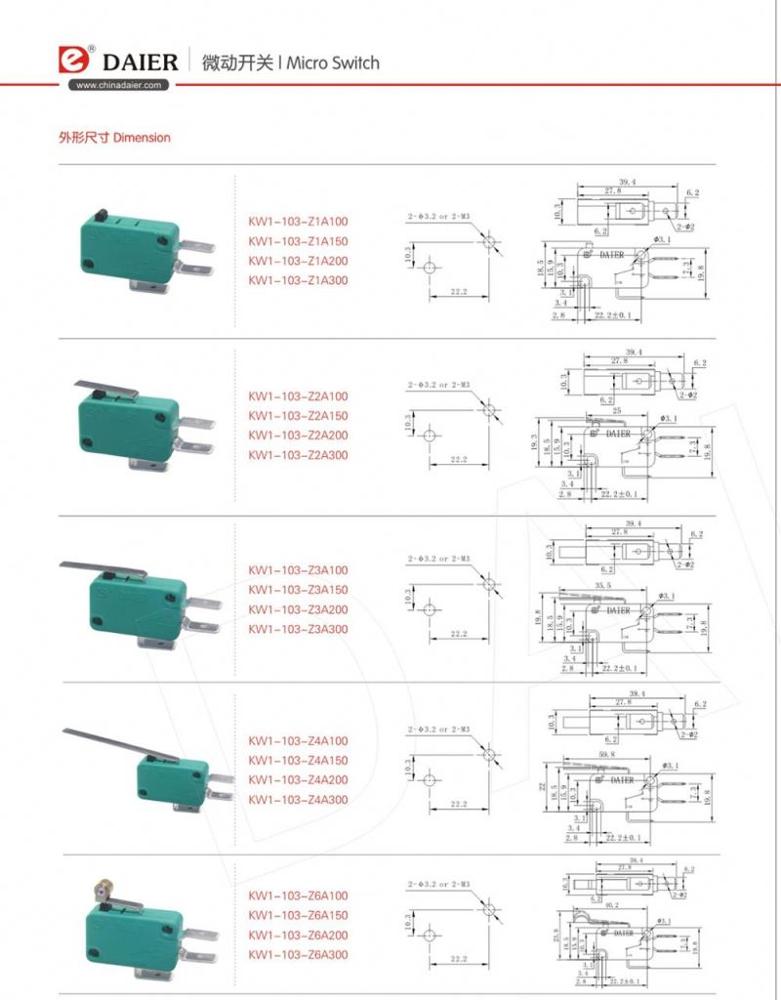

KW1-103 Series Micro Switch:
This is a high quanlity micro switch which have a variety of actuator, like no lever, short lever, middle lever, long lever, roller lever and arc lever.
Electrical ratings from low levels up to 16 Amps, and a broad range of operating forces from 50GF to 400GF.
The terminal styles include PCB through hole, quick connect, screw and solder.
The degree protection provided by enclosure can be reached IP40.
They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
